TOA BG-220 Brugsanvisning
Her er TOA BG-220 (Stavblender) brugervejledning. 16 sider på sprog med en vægt på 1,597,232.0 Mb. Hvis du ikke kan finde svar på dit problem Spørg vores community.
Side 1/16

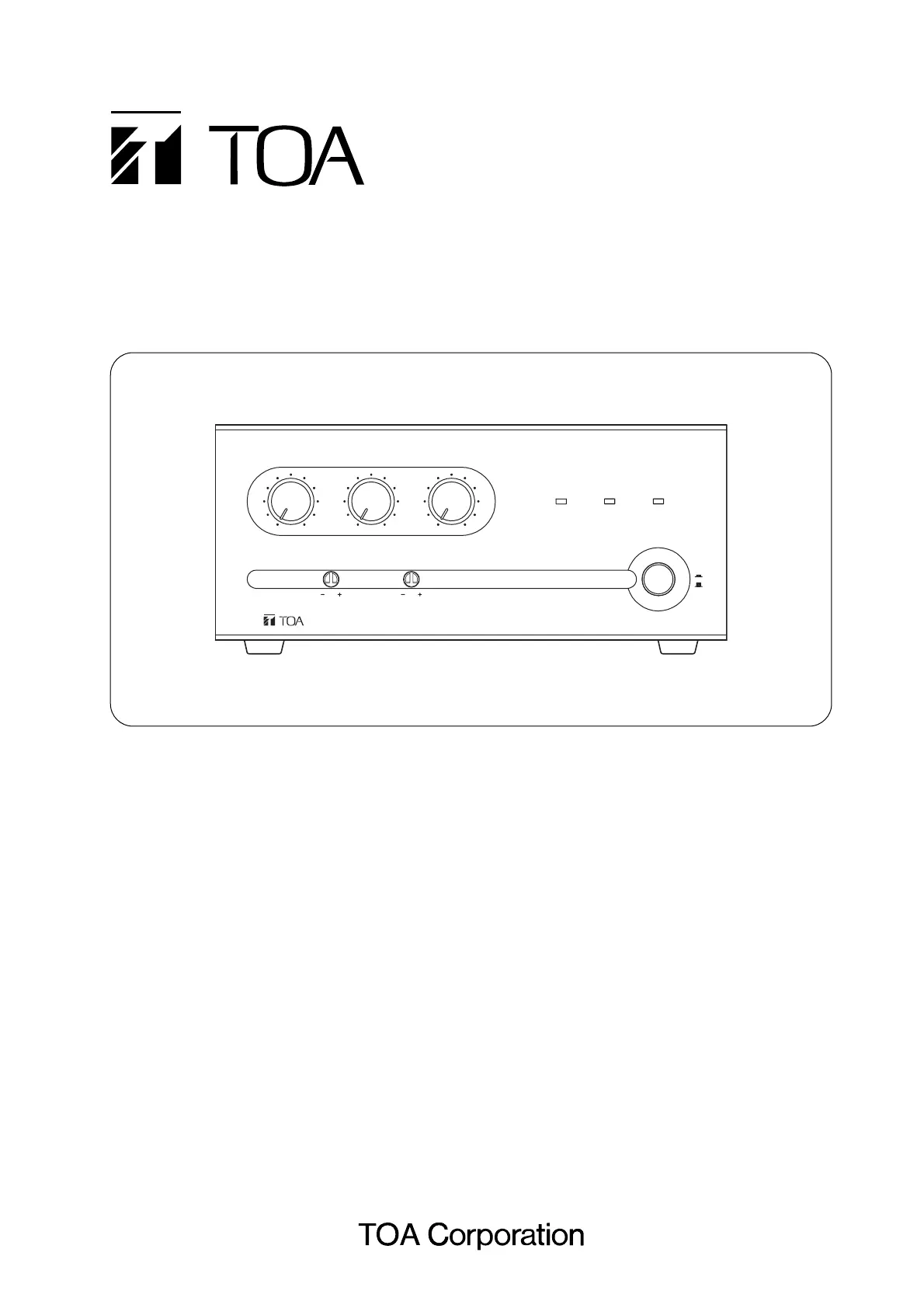

OPERATING INSTRUCTIONS
MIXER AMPLIFIERS BG-220
BG-235
1. IMPORTANT SAFETY INSTRUCTIONS .... 2
2. SAFETY PRECAUTIONS ........................... 3
3. GENERAL DESCRIPTION ......................... 5
4. FEATURES ................................................. 5
5. NOMENCLATURE AND FUNCTIONS
Front ............................................................ 5
Rear ............................................................. 6
6. CONNECTIONS
6.1. Removable Terminal Plug
Connection ........................................... 8
6.2. Input Connections ................................ 8
6.3. Output Connections .............................. 9
6.4. Manual Mute Terminal Connection ...... 9
7. MUTING FUNCTION
7.1. Manual Mute ....................................... 10
7.2. Automatic Mute .................................. 10
8. MOH OUTPUT ASSIGNMENT ................. 11
9. 2-CHANNEL BROADCAST ...................... 11
10. OPERATION ............................................. 12
11. INSTALLATION PRECAUTIONS ............. 12
12. RACK MOUNTING BRACKET
ATTACHMENT ......................................... 12
13. VOLUME SETTING .................................. 13
14. VOLUME CONTROL COVER .................. 13
15. BLOCK DIAGRAM ................................... 14
16. DIMENSIONAL DIAGRAM ....................... 15
17. SPECIFICATIONS .................................... 16
Accessories ............................................... 16
Optional products ...................................... 16
MIC/LINE 1
MIXER AMPLIFIER BG-235
BASS
010 010 010
TREBLE
LINE 2 LINE 3
SIGNAL PEAK POWER
ON
OFF
Thank you for purchasing TOA's Mixer Amplifiers.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
Problemløsning TOA BG-220
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Mærke: | TOA |
| Kategori: | Stavblender |
| Model: | BG-220 |
