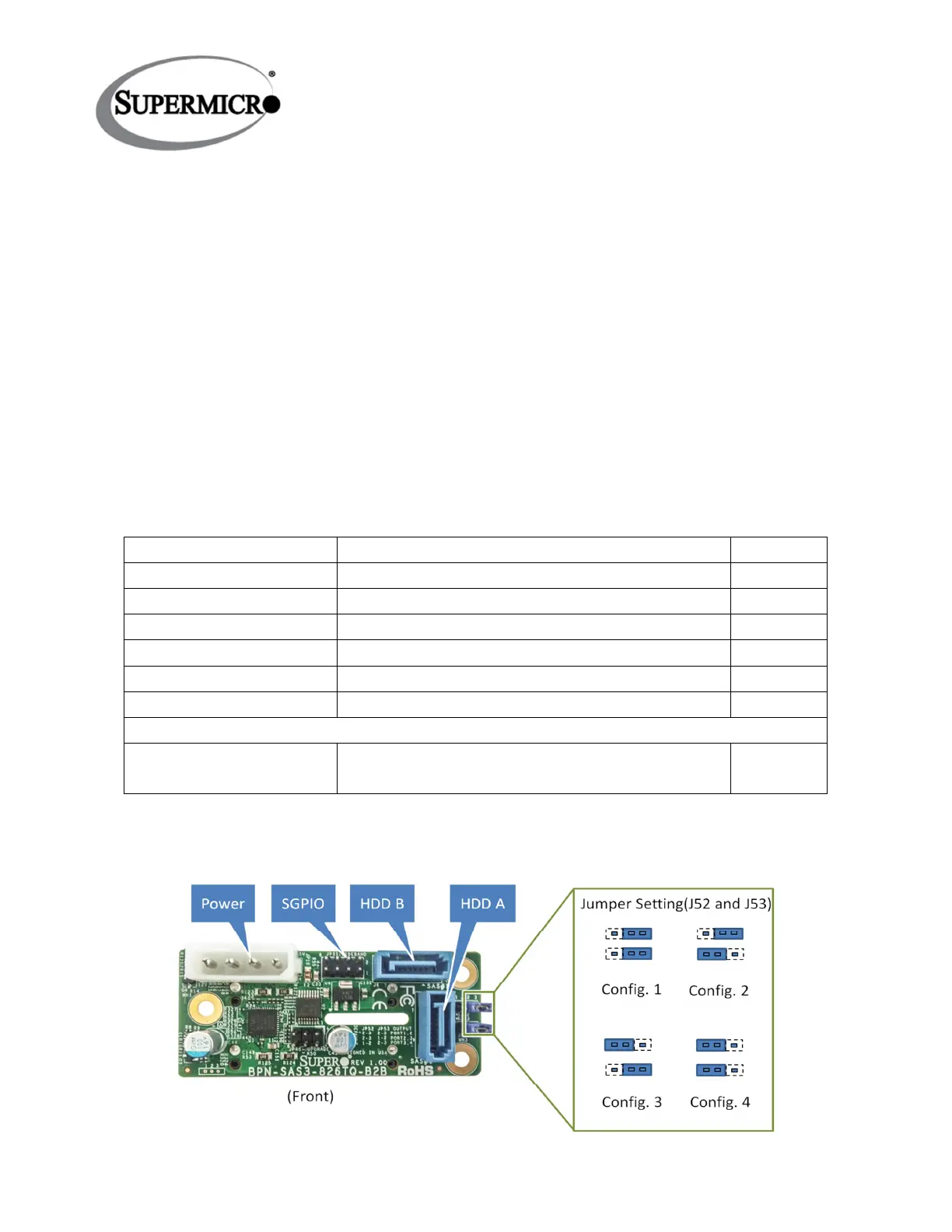

Dual 2.5” SAS/SATA Drive Kit (MCP-220-82616-0N)
Quick Installation Guide
The kit provides additional storage for Supermicro’s Superchassis. Key features include:
• Dual 2.5” hot-swappable capacity; support 12 Gbps/SAS3 and 6 Gbps/SATA3.
• 4 SAS/SATA port settings (backward compatible with MCP-220-82609-0N) to
support SGPIO for Fail/Locate LED indicators.
• 2.5” tool-less drive trays.
• Compatible with 216B/826B/417B/846X/847B chassis and others.
Packing List:
Part Number
Description
Quantity
CBL
-
0234L
4
-
pin power supply Y
-
cable (15 cm)
1
CBL
-
0481L
SATA S
-
S cable (81 cm)
2
CBL
-
CDAT
-
0841
8 pin
-
to
-
8 pin SGPIO cable (81 cm)
1
MCP
-
220
-
00117
-
0B
2.5” hot
-
swappable tool
-
less drive tray
2
BPN
-
SAS3
-
826TQ
-
B2B
12Gbps backplane for 2.5" SAS/SATA drives
1
Misc.
Metal cage, mounting screws and stickers
-
Optional 12G cable:
CBL
-
SAST
-
0699
I
nternal mini SAS HD to 4 SATA
cable (
12G,
75/75/90/90cm with 75cm SB, S. 30AWG)
SAS/SATA Port Jumper Settings:
