Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: July 18, 2019

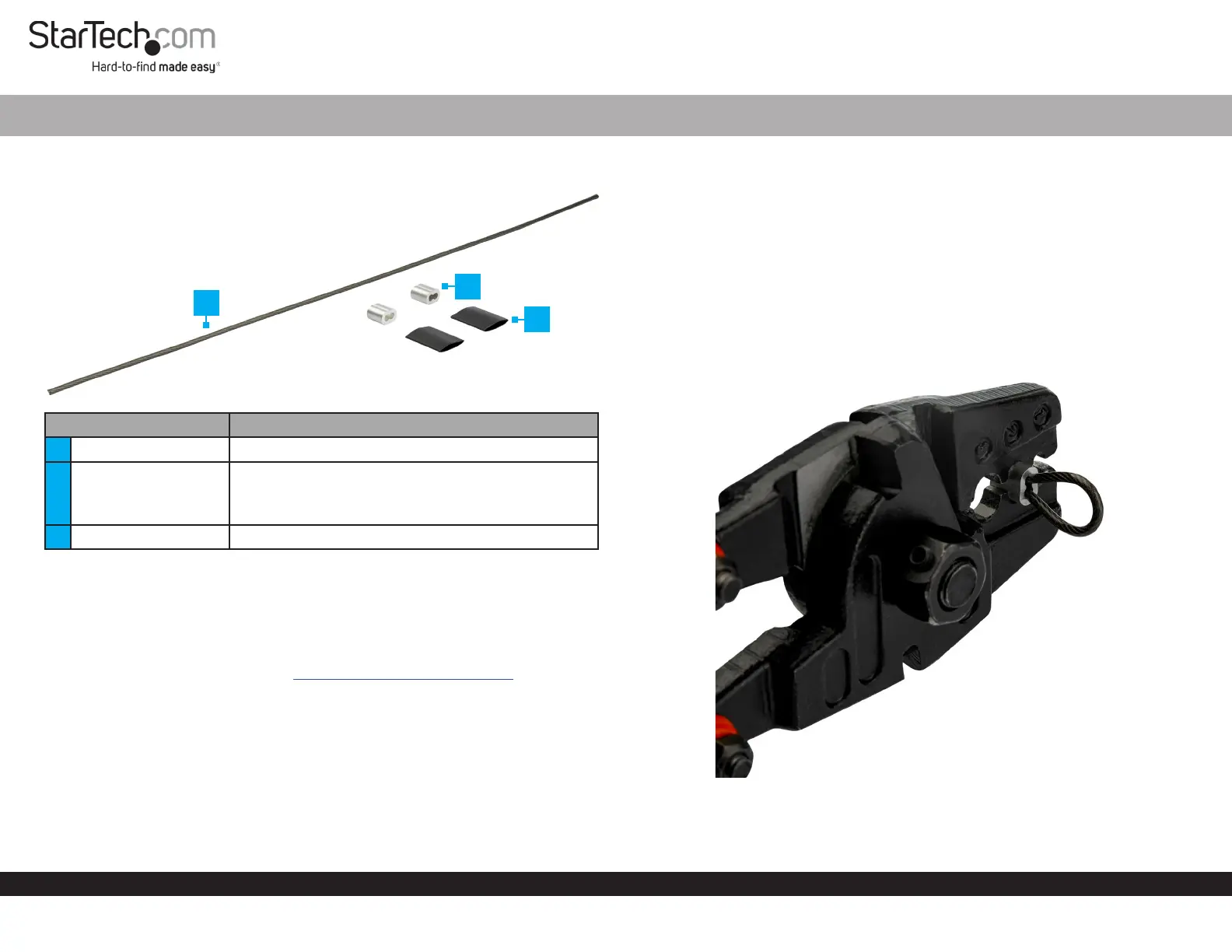

Product Diagram (CONNLOCKPK)
Part Function
1 Steel Cable Tether • Tether A/V Cables to A/V Adapters
2 Aluminum Ferrule
• Create a loop by routing the Steel Cable Tether
through each opening
• Crimp to secure the Steel Cable Tether loop
3 Heat Shrink Tubing • Shrink around the crimped Aluminum Ferrules
Requirements
• Swaging Tool x 1
• (Optional) Heat Gun x 1
• (Optional) Wire Cable Cutter x 1
For the latest requirements please visit: www.startech.com/CONNLOCKPK.
Installation
1. (Optional) Thread the Heat Shrink Tubing onto the center of the Steel Cable
Tether.
Note: This step is necessary if you plan to utilize the Heat Shrink Tubing.
2. Thread the Aluminum Ferrules onto each end of the Steel Cable Tether.
3. Wrap one end of the Steel Cable Tether around the A/V Cable.
Connectivity Lock - Steel Cable Tether
4. Route the working end of the Steel Cable Tether back into the second hole in the
Aluminum Steel Ferrule.
5. Cinch the Steel Cable Tether until it ts snugly around the A/V Cable.
Note: Do not cinch the Steel Cable Tether down all the way. Cinch the Steel Cable
Tether until it is no longer possible to slip the loop over the connectors of the AV
Cable.
6. Crimp the Aluminum Steel Ferrule in the appropriate tting of a Swaging Tool.
(Figure 1)
Note: It may be necessary to crimp the Aluminum Steel Ferrule a few times to create
a strong and circular shaped crimp.
7. Wrap the other end of the Steel Cable Tether around the cable portion of the A/V
Adapter.
1
2
3
Figure 1
