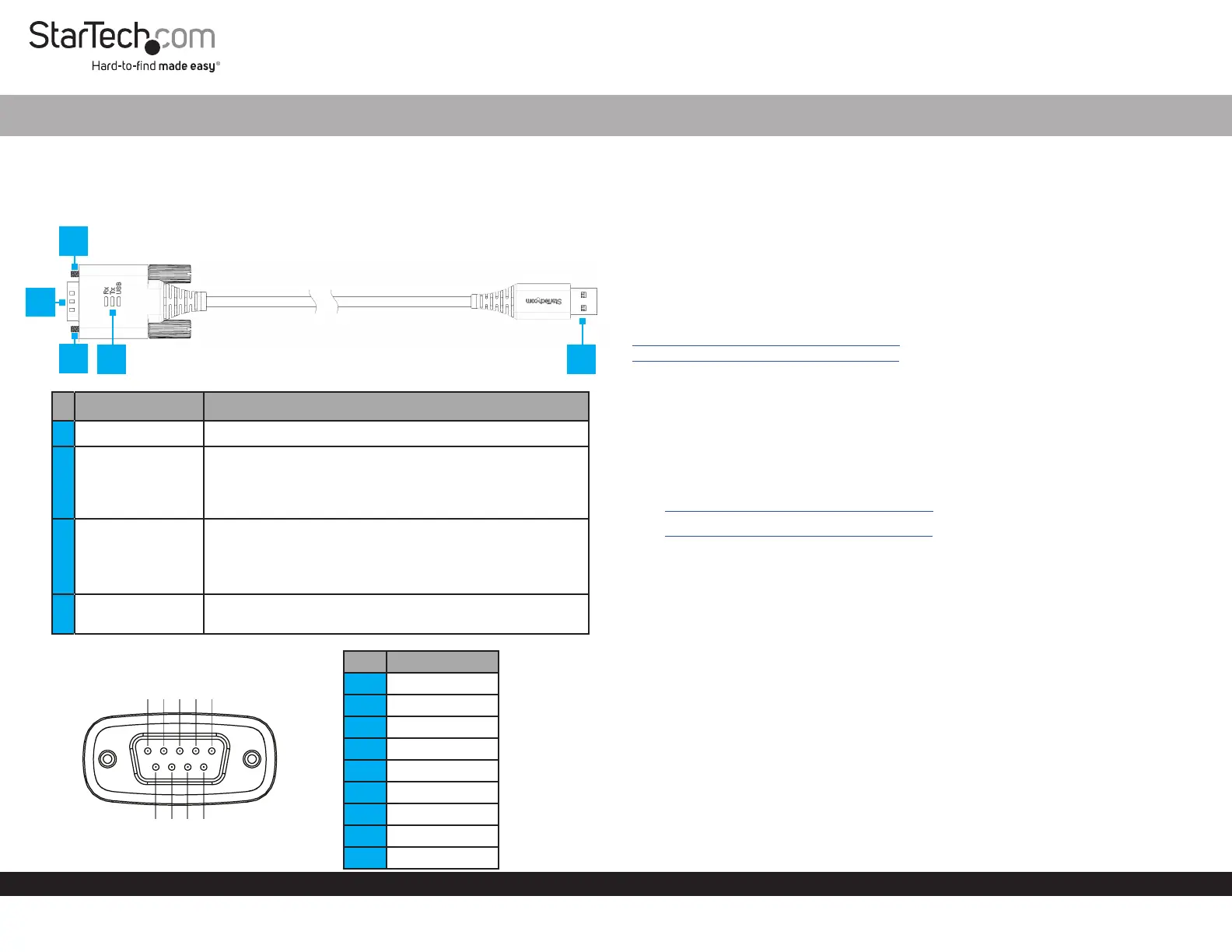

Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: October 2, 2023
Product ID
1P3FFCB-USB-SERIAL
1P10FFC-USB-SERIAL
Component Function
1 Serial Port DB9 • Connect to a Serial Peripheral Device
2 DB9 Screws
• Used to secure the Serial DB9 Port to the Serial
Peripheral Device
• The included DB9 Nuts can be installed for
compatibility with Serial Peripheral Devices or Cables
3 LED Indicators
• Data Receive LED: Flashes Green to indicate activity
• Data Transmit LED: Flashes Yellow to indicate activity
• USB LED: Solid Blue to indicate driver has been
installed, and USB connection enumerated
4 USB Type A Port
• Connect the USB to Serial Adapter to an available
USB-A Port
Pinout Diagram
FTDI USB-A to RS232 DB9 Serial Adapter Cable - M/M - ESD Level 4
Package Contents
• USB to Serial Adapter x 1
• DB9 Nuts x 2
• Quick-Start Guide x 1
Requirements
• USB Type-A Enabled Computer x 1
For the latest drivers/software, product information, technical specications, and
declarations of conformance, please visit:
www.StarTech.com/1P3FFCB-USB-SERIAL
www.StarTech.com/1P10FFC-USB-SERIAL
Installation
Install the Driver and Adapter
Note: Drivers should install automatically in most supported operating systems. If
they do not, please complete the following steps:
1. Navigate to:
b. www.StarTech.com/1P3FFCB-USB-SERIAL
c. www.StarTech.com/1P10FFC-USB-SERIAL
4. Click the Drivers/Downloads tab.
5. Under Driver(s), download the appropriate Driver Package for your operating
system.
Windows
1. Right-click the downloaded le and extract the contents with Extract All.
2. Browse the Windows folder and run the Setup le.
3. Follow the on-screen instructions to complete the installation.
4. Connect the USB to Serial Adapter to an available USB-A port.
macOS
1. Double-click the downloaded le.
2. Open the folder that matches your macOS Version and run the Installer le inside
the folder.
3. Follow the on-screen instructions to complete the installation.
4. Connect the USB to Serial Adapter to an available USB-A port.
43
1
Pin RS-232
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
2
2
DB-9 Male
54321
9876
Problemløsning StarTech.com 1P10FFC-USB-SERIAL
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 34 mm |
| Højde: | 16 mm |
| Vægt: | 120 g |
| Produktfarve: | Sort |
| Pakkevægt: | 130 g |
| Pakkedybde: | 1 mm |
| Pakkebredde: | 220 mm |
| Pakkehøjde: | 200 mm |
| Opbevaringstemperatur (T-T): | -40 - 80 °C |
| Relativ luftfugtighed ved drift (H-H): | 0 - 95 % |
| Driftstemperatur (T-T): | -40 - 80 °C |
| Kabellængde: | 3 m |
| Understøttede Mac-operativsystemer: | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Understøttede Linux-operativsystemer: | Ja |
| Hovedkassen højde (udvendigt): | 290 mm |
| Hovedkassens længde (udvendigt): | 355 mm |
| Hovedkassens bredde (udvendigt): | 570 mm |
| Produkter pr. hovedkasse (udvendigt): | 100 stk |
| Understøttede operativsystemer til servere: | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Stik 1: | USB Type-A |
| Stik 2: | DB-9 |
| Stik 1 køn: | Hanstik |
| Stik 2 køn: | Hanstik |
| Baud hastighed: | 921.6 Kbit/s |
| Data-bits: | 7, 8 |
| Stop bits: | 1, 2 |
| Stik 1 formfaktor: | Lige |
| Stik 2 formfaktor: | Lige |
| Chipsæt: | FTDI - FT232R |
| FIFO (først ind, først ud): | 256 B |
| Paritetsbit: | Even, Mark, N,Odd, Space |
