Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: October 11, 2023 9:32 AM

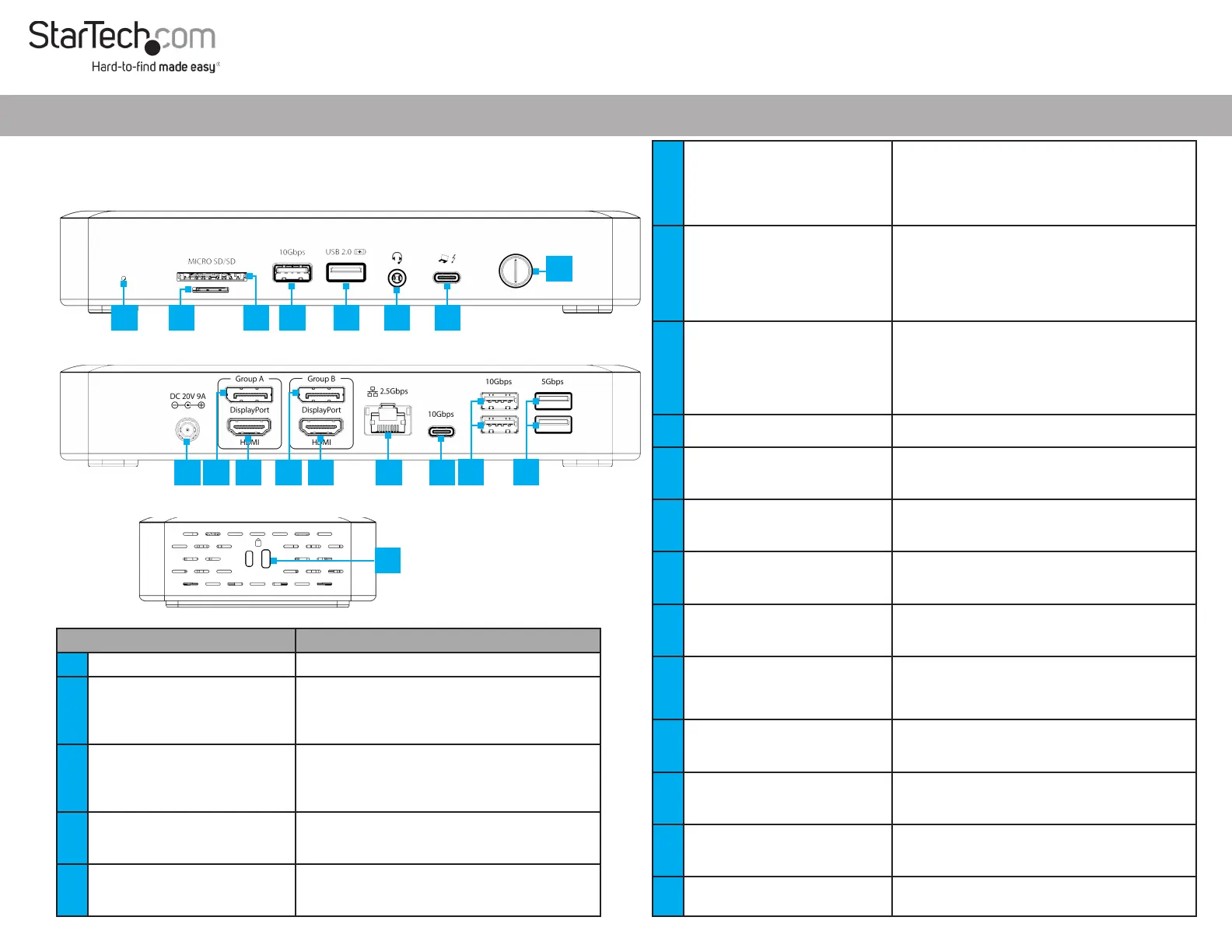

Product Diagram (Side A)
Thunderbolt 4/USB4 Dock, Quad Display, 7x USB, 2.5GbE, 98W Power Delivery
1
13
2
(Side B)
Product ID
132N-TB4USB4DOCK / 132UE-TB4USB4DOCK
(Side C)
Component Function
1 Power Button
• Press and Release to Toggle Power for the Dock
2
Thunderbolt 4 Host Port
(USB Type-C)
• Connect to a Thunderbolt 4 Port on a Host Computer
• Thunderbolt 3/USB4 (40 Gbps)
• Power Delivery 3.0 Specication
• Capability of charging the Host Computer up to 98W
3 3.5mm Headset Jack
• Connect a 3.5mm Audio Device
• 4-Position CTIA
• Mono Audio Input
• Stereo Audio Output
4 USB-A Data/Charge Port
• Connect and/or Charge a USB-A Peripheral
• USB 2.0 (480Mbps)
• Supports 7.5W BC 1.2 Charging (5V/1.5A)
5 USB-A Data Port
• Connect a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
129
18
34
11
10
16
15
6 SD Card Reader
• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0
compatibility
• Push an SD Card, label side up, into the SD Card Slot
• Note: The Host Computer’s Operating System (OS)
will automatically detect the SD Card and install the
required driver software
7 MicroSD Card Reader
• Micro Secure Digital (microSD) 4.0 UHS-II, microSD
3.0, 2.0, 1.1, and 1.0 compatibility
• Push a microSD Card, label side down, into the
microSD Card Slot
• Note: The Host Computer’s Operating System (OS)
will automatically detect the SD Card and install the
required driver software
8 Status LED
• Illuminates Green, When the Dock is Connected to a
Host Computer
• Illuminates White, When the Dock is Not Connected
to a Host Computer
• Does Not Illuminate, When the Dock is Turned O
9 DC 20V Port
• Connect the Dock to a Power Source, using the
Universal Power Adapter
10
DisplayPort Port
(Group A)
• Connect a DisplayPort Display as Video Output #1
• DisplayPort 1.4
• Resolutions up to 7680 x 4320 60Hz
11
HDMI Port
(Group A)
• Connect an HDMI Display as Video Output #2
• HDMI 2.1
• Resolutions up to 7680 x 4320 60Hz
12
DisplayPort Port
(Group B)
• Connect a DisplayPort Display as Video Output #3
• DisplayPort 1.4
• Resolutions up to 7680 x 4320 60Hz
13
HDMI Port
(Group B)
• Connect an HDMI Display as Video Output #4
• HDMI 2.1
• Resolutions up to 7680 x 4320 60Hz
14 2.5 Gigabit Ethernet Port
• Connect the Dock to a Network Device, using a
Network Cable
• 2.5GBASE-T / 1000BASE-T / 100BASE-T / 10BASE-T
• 2.5Gbps/1000Mbps/100Mbps/10Mbps
15 USB-C Data Port
• Connect a USB-C Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
16 2x USB-A Data Ports
• Connect USB-A Peripherals
• USB 3.2 Gen 2 (10 Gbps)
• Supports 4.5W of Power (5V/0.9A)
17 2x USB-A Data Ports
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports 4.5W of Power (5V/0.9A)
18
2x Lock Slots
(Standard & Nano)
• Connect a K-Slot Style Locking Device to deter the
theft of the Docking Station
14
567
17
8
Problemløsning StarTech.com 132N-TB4USB4DOCK
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Tænd-/slukkontakt: | Ja |
| Vekselstrømsindgangsspænding: | 110 - 240 V |
| Bredde: | 210 mm |
| Dybde: | 96 mm |
| Højde: | 34 mm |
| Vægt: | 200 g |
| Produktfarve: | Grå |
| Pakkevægt: | 1400 g |
| Pakkedybde: | 145 mm |
| Pakkebredde: | 235 mm |
| Pakkehøjde: | 90 mm |
| Kompatible hukommelseskort: | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| HD-type: | 8K Ultra HD |
| Opbevaringstemperatur (T-T): | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H): | 0 - 95 % |
| Antal HDMI-porte: | 2 |
| Ethernet LAN-porte (RJ-45): | 1 |
| Antal USB 2.0-porte: | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte: | 2 |
| Udgange til hovedtelefoner: | 1 |
| Ethernet LAN: | Ja |
| Driftstemperatur (T-T): | 0 - 40 °C |
| Ethernet LAN-datahastigheder: | 10,100,1000,2500 Mbit/s |
| Husmateriale: | Aluminium |
| Hurtig start guide: | Ja |
| Kabler inkluderet: | Thunderbolt |
| Forbindelsesteknologi: | Ledningsført |
| Strømforbrug (maks.): | 180 W |
| DC-in-stik: | Ja |
| LED-indikatorer: | LAN, Power |
| Strømkilde type: | DC |
| Udgangsspænding: | 20 V |
| Udgangsstrøm: | 9 A |
| AC-adapter inkluderet: | Ja |
| Indbygget kortlæser: | Ja |
| Bæredygtighedscertifikater: | RoHS |
| Slot til kabellås: | Ja |
| Understøttede Windows-operativsystemer: | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Understøttede Mac-operativsystemer: | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Hovedkassen højde (udvendigt): | 285 mm |
| Hovedkassens længde (udvendigt): | 310 mm |
| Hovedkassens bredde (udvendigt): | 380 mm |
| Værtsgrænseflade: | Thunderbolt 4 |
| Tilslutning af hovedtelefoner: | 3,5 mm |
| Indgangsstrøm: | 2.5 A |
| Maksimal opdateringshastighed: | 60 Hz |
| HDMI-version: | 2.1 |
| DisplayPort-version: | 1.4 |
| Antal DisplayPorts: | 2 |
| Kabellåseslids type: | Kensington, Nano |
| Produkter pr. hovedkasse (udvendigt): | 4 stk |
| Fuld duplex: | Ja |
| Overholdelse af bæredygtighed: | Ja |
| Kombineret hovedtelefon/mikrofon-port: | Ja |
| Kobber ethernet kabelteknologi: | 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Maksimal digital opløsning: | 7680 x 4320 pixel |
| Dataoverførselshastighed: | 40 Gbit/sek. |
| USB strømforsyning revision: | 3.0 |
| USB strømforsyning: | Ja |
| Kompatible strømplug typer: | US |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte: | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte: | 3 |
| Understøtter UASP: | Ja |
| Chipsæt: | Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
