DM520P
Push-to-talk Handheld Microphone
Thank you for your choice of Speco Technologies’ handheld microphone. This unit is designed and DM520P
manufactured to provide an economical soluon for CB and professional communicaons. The sturdy, ergonomic
construction ensures a long and versale life.

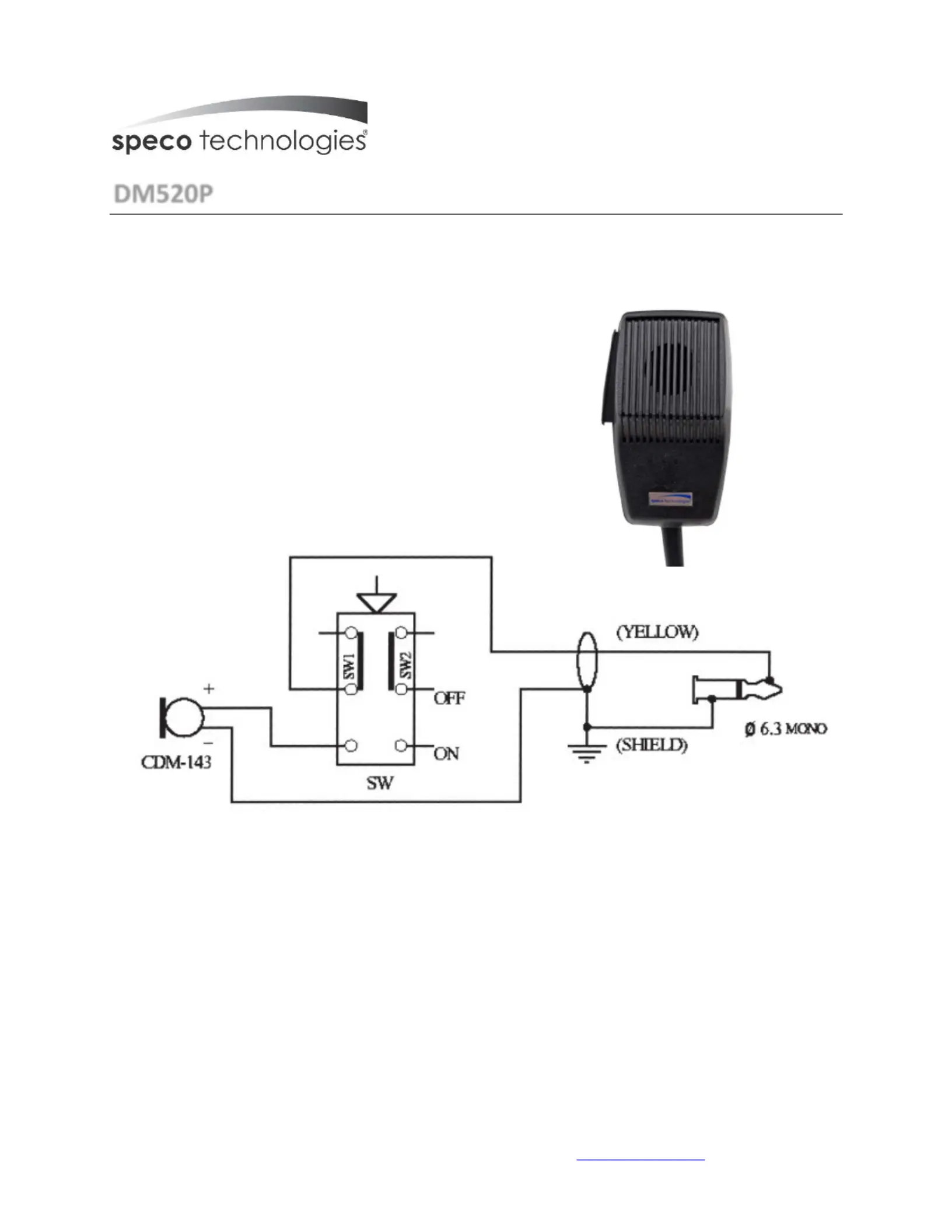

CONNECTION DIAGRAM:
NOTE ON SWITCH TIMING: When Push to talk switch is pressed, SW2 contact closes before SW1 contact closes.
SPECIFICATIONS:
Type: Dynamic Microphone
Direcvity: Omni-directional
Impedance: 600 Ohms @ 1kHz (tolerance ±30%)
Sensivity: -78±3dB @ 1kHz re 1V/ µ bar
Frequency Response: 100 ~ 10kHz
Connector: ¼” unbalanced (TS) phono plug
Dimensions: 2.4” (W) x 2” (D) x 4” (H) + 6’ coiled cable
Warranty: 2 Years (see Web Site for full terms and restricons)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 10/14/22
