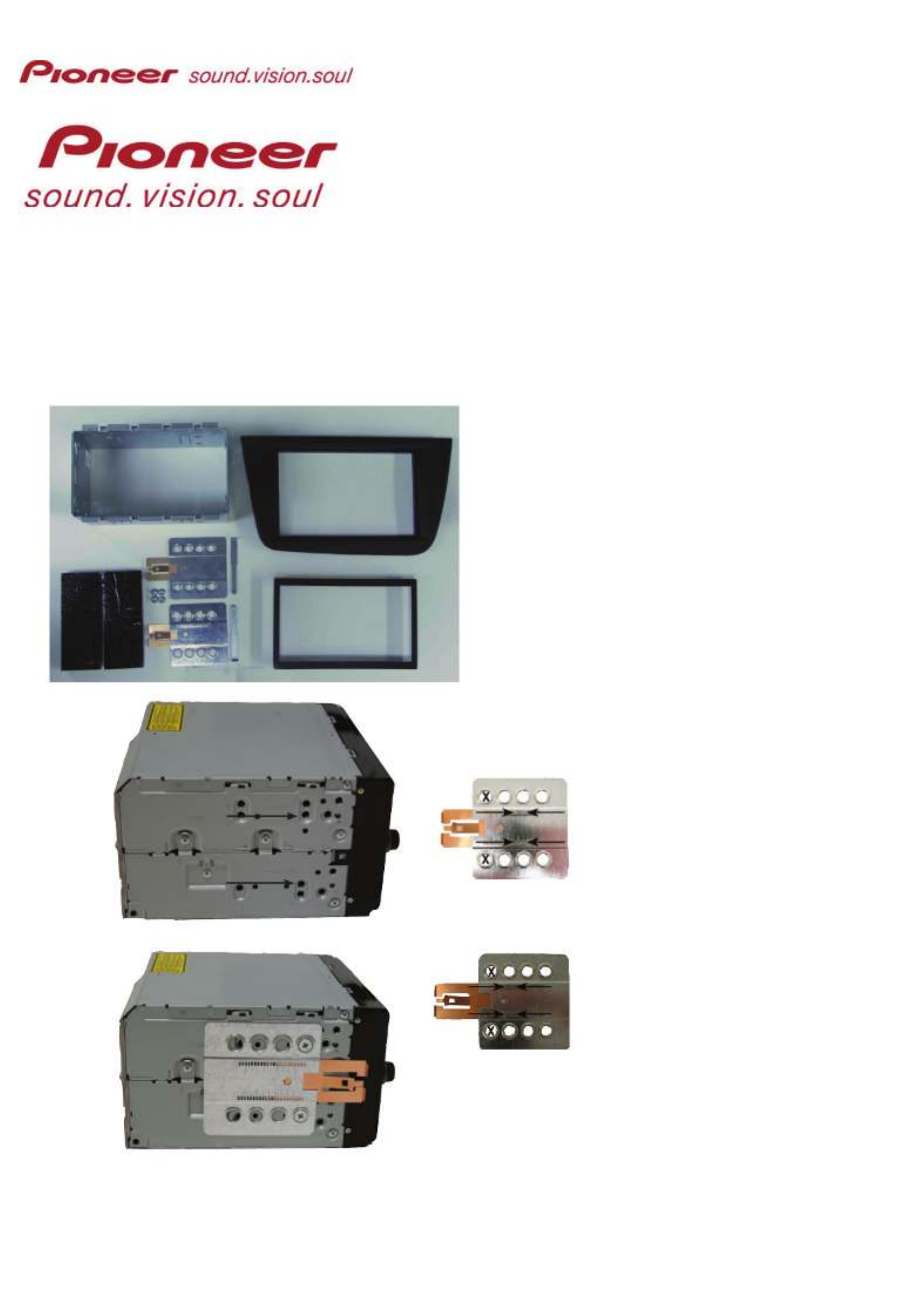

* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.
Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
* 2X Radio keys
Installation manual for:
Seat Altea 2004 -->/ Toledo
2-DIN
12.301328-06(antracite)
12.301328-07 (black)
12.301328-08 (Grey)
