ISSUED: 10-31-08 SHEET #: 056-9012-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
1 of 1
FRONT
FRONT
Note: Actual parts may appear slightly dierent than illustrated.
Installation and Assembly - Projector Adapter Plate
Models: PAP-SANYO-ST1, PAP-SANYO-ST1-S,
PAP-SANYO-ST1-W
© 2008 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
IMPORTANT! Read entire instruction sheet before you
start installation and assembly.
Before you start check the parts list below to make sure all
of the parts shown are included.
•Installer must verify that the supporting surface will
safely support the combined weight of all attached
equipment and hardware.
WARNING
1
PROJECTOR
*Notch indicates front of projector.

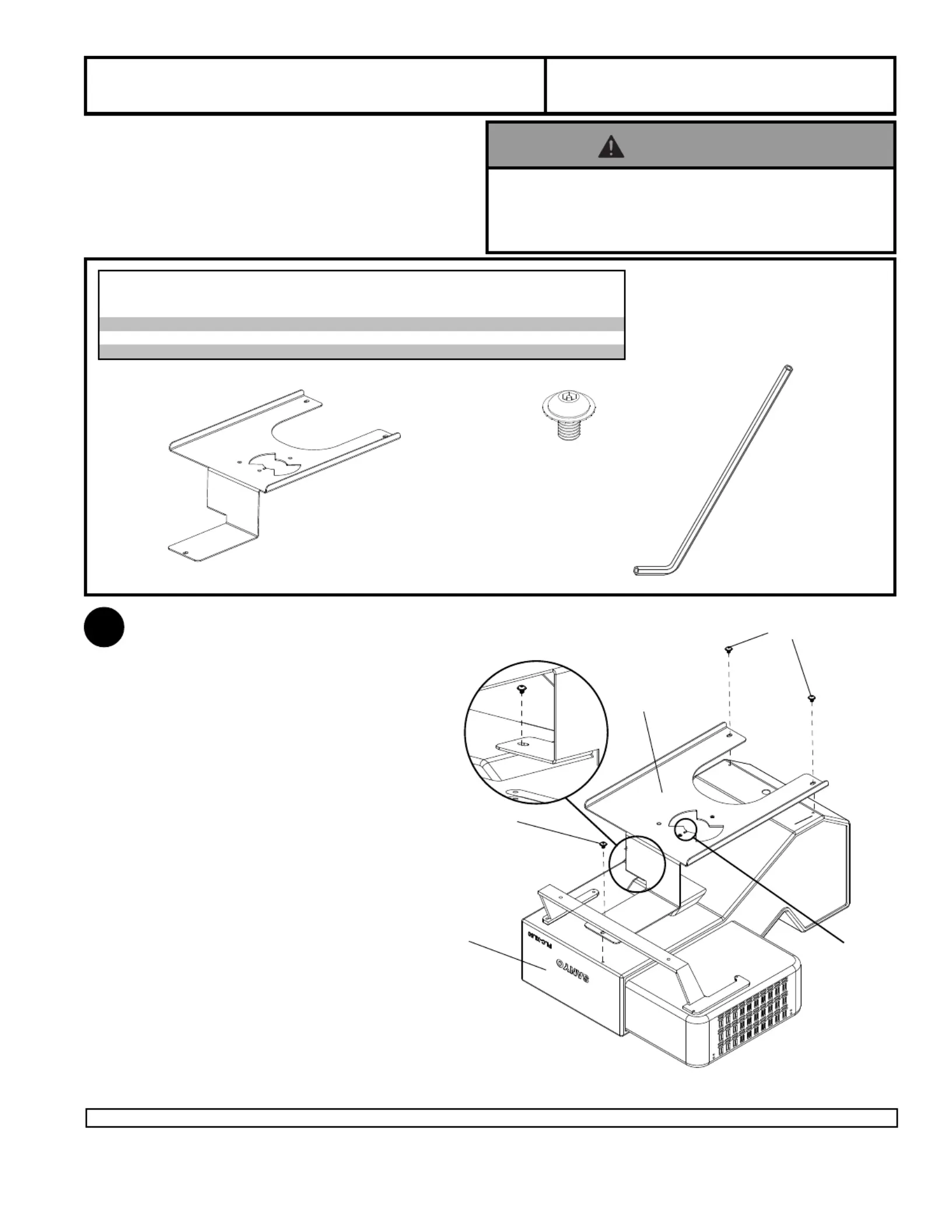

Attach adapter plate (A) to projector using
four M4 x 8 mm socket pin serrated washer
head screws (B). Tighten using 4 mm allen
wrench (C).
*
B
A
BA C
B
B
SANYO-ST1 SANYO-ST1-S SANYO-ST1-W
Qty
.
Part # Part # Part #
Aadapter plate 1 055-1878 055-4878 055-2878
BM4 x 8 mm socket pin serrated washer head screw 4 510-1005 510-2005 510-2005
C4 mm allen wrench 1 560-9646 560-9646 560-9646
Parts List
Description
