Architects specifications:
The Ceiling Plate shall be a Peerless model and shall be attached where indi-
cated on the plans. It shall have a 1 1/2 - 11.5 NPS threaded fitting to accept a Peerless
flush mount tube or extension column. It shall be constructed of 12 gauge cold rolled steel
and finished in black or white fused epoxy. It shall be U.L. Listed. Assembly and installa-
tion shall be done according to the instructions provided by the manufacturer.
See page 2 for specifications / Jumbo 2000 Mount compatibility.
Finished Ceiling Installation -
Wood screws Included.
MODELS: CMJ 480, CMJ 480W, CMJ 490, CMJ 490W
Peerless Industries, Inc.
3215 W. North Ave. phone: (708) 865-8870
Melrose Park, IL 60160 fax: (708) 865-2941
ISSUED: 10-23-95 SHEET NO: 128-9502-5 02-28-07
TECHNICAL DATA SHEET

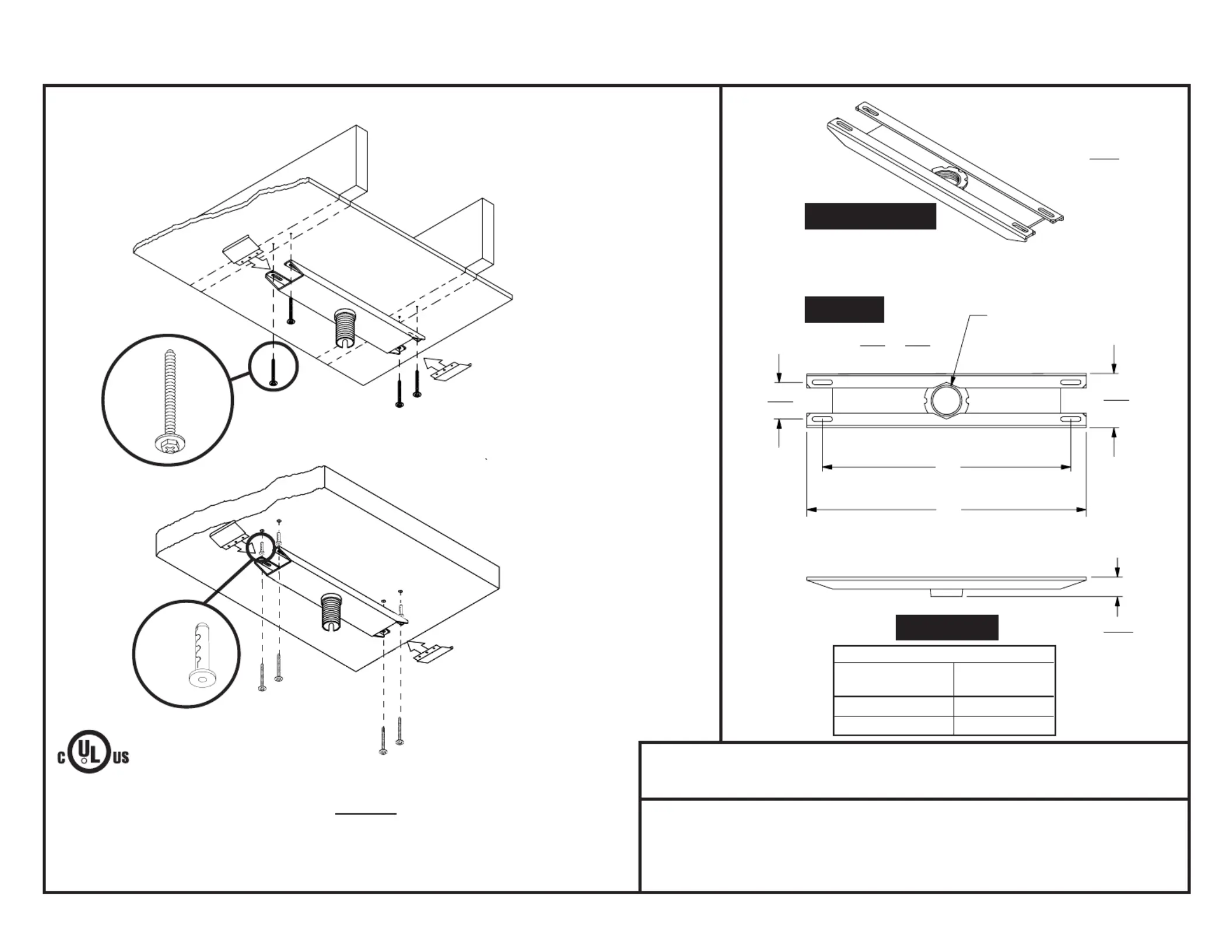

CEILING PLATE FOR JUMBO 2000 MOUNTS
TOP VIEW
4 SLOTS
1.35
34
X
.35
9
1 1/2 - 11.5 NPS
THREADED FITTING
2.5
64
3.5
89
1.375
35
ALL DIMENSIONS:
INCH
MM
ISOMETRIC VIEW
A
B
FRONT VIEW
MODEL NUMBER
CMJ 480 CMJ 490
CMJ 480W CMJ 490W
A20" (508 mm) 24" (610 mm)
B22" (559 mm) 26" (660 mm)
R
page 1 of 2
concrete
anchor
Structural Ceiling Installation -
Concrete anchors not Included.
The Ceiling Plate for Jumbo
2000 Mounts can be attached
to a finished ceiling (wood
joists) or wood beam using the
four washer head wood screws
included, or a structural ceiling
(concrete) using concrete
anchor accessory kit ACC 204
(sold separately).
Problemløsning Peerless-AV CMJ490
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 660 mm |
| Vægt: | 2600 g |
| Produktfarve: | Sort |
| Kontroltype: | Ikke tilgængelig |
| Monteringstype: | Loft |
| Harmoniseret systemkode (HS): | 85299097 |
| Kompatible produkter: | Jumbo 2000 |
| Maksimal vægtkapacitet: | 136 kg |
