Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/11/19 INST99-8270HG
I N S TA L L AT I O N I N S T R U C T I O N S
99-8270HG
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision
• ISO DDIN radio provision †
• Pioneer modular DDIN radio
provision †
• Painted high gloss black to
match the factory finish

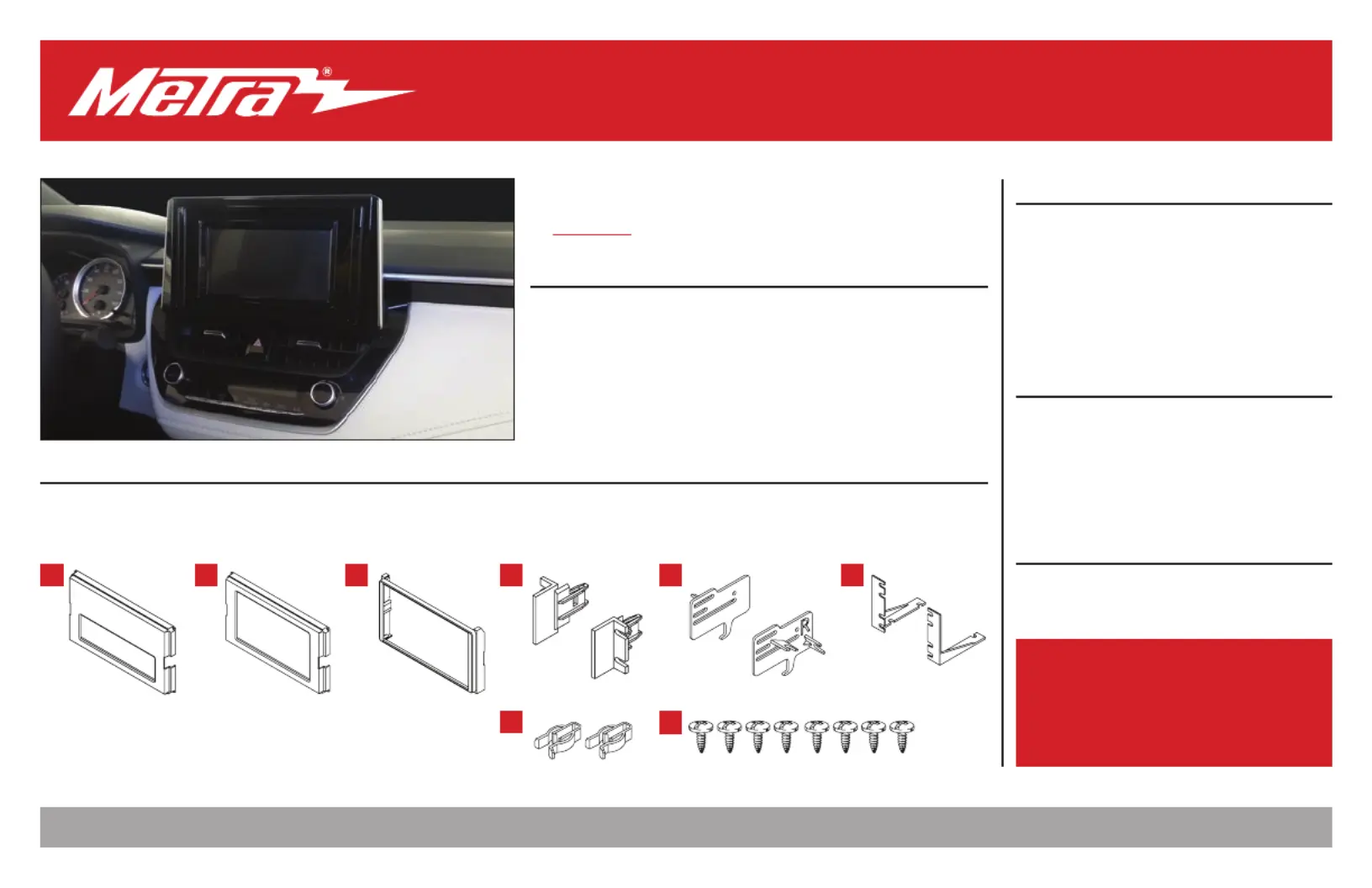

KIT COMPONENTS
• A) ISO DIN radio trim panel • B) ISO DDIN radio trim panel • C) Trim panel housing • D) Trim panel housing clip brackets • E) Radio brackets
• F) Pioneer adapter brackets • G) Panel clips (qty. 2) • H) Phillips screws (qty. 8)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision .......................................3
–ISO DDIN radio provision .....................................4
–Pioneer modular DDIN radio provision .............5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1765
Antenna Adapter: 40-LX11
Steering wheel control interface: ASWC-1
12v-to-6v camera step-down: AX-CAM6V
A B C D E F
G
Toyota Corolla 2020-Up, Corolla Hatchback 2019-Up
H
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
† This kit can only be used with an ISO DDIN radio
with an “L” shaped chassis design, with the radio
chassis at the bottom of the screen. As of this
writing, only the Alpine INE-W967HD (discontinued,
replaced by INE-W977HD), iLX-107, and iLX-207 have
this design. Also, The Pioneer modular radios,
DMH-C2550NEX and DMH-C2500NEX, can be used
with the adapter brackets provided.
