120AFDI5V Converter (packaged separately)
Receiver Wiring Adaptor
120 70-5517
Revision 06/26/17
*120705517*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.

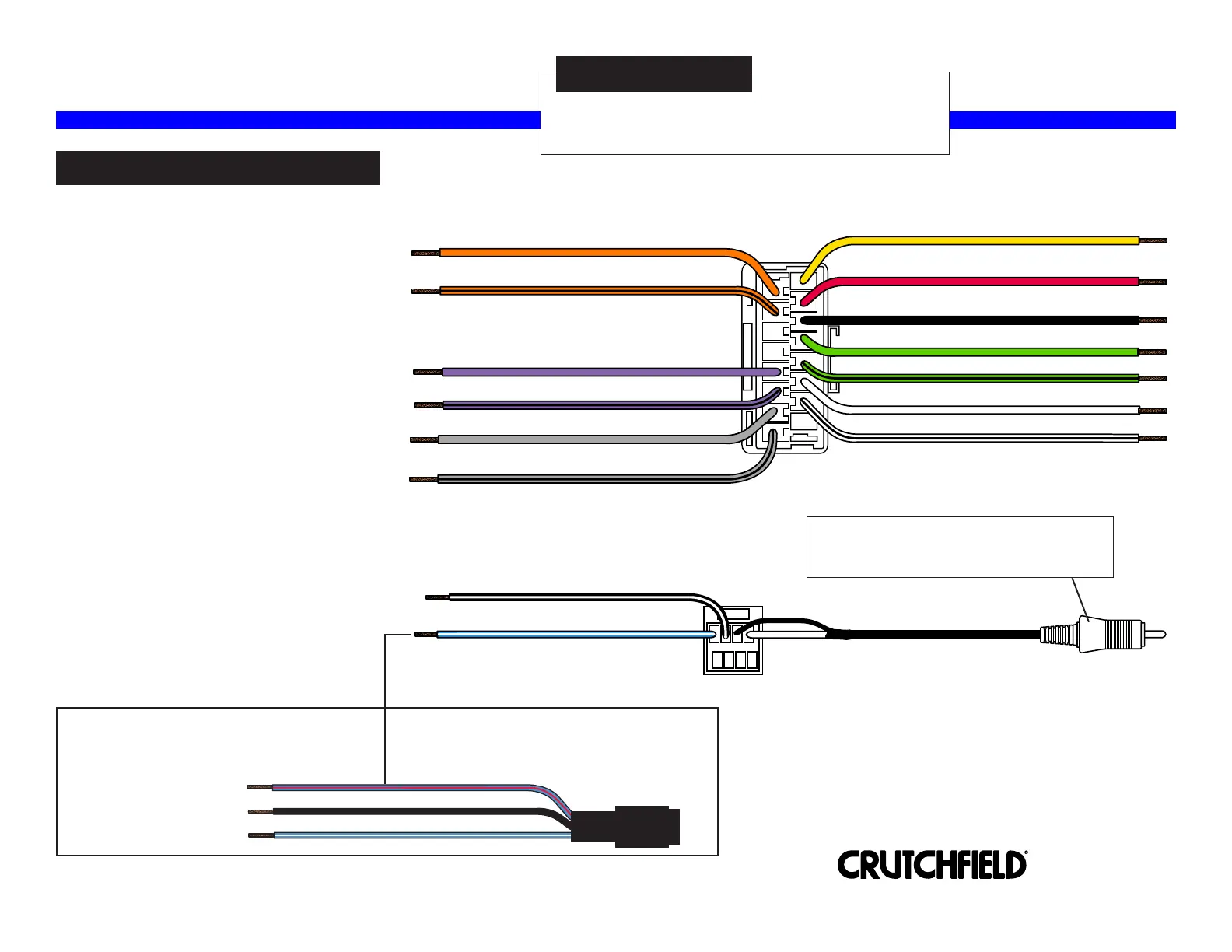

Red - 12 Volts Switched Power
Black - Chassis Ground
Gray - Right Front Speaker Positive
White - Left Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Black/White - Amplifier Ground
Orange - Illumination
Copyright 2017 Crutchfield Corporation
STEP 1 -- CONNECT WIRES
A.
B.
C.
D.
E.
For best results, the RCA plug should be
connected to the subwoofer preamp output
on the new receiver.
Blue/Red - Connects to Blue/White
Wire on Amp/Sub harness
Black - Chassis Ground
Blue/White - Connects to Blue/White Amp Remote Wire from receiver
Match wires below to the matching function
of each wire on your receiver (refer to
instructions supplied with receiver).
The wire colors of your new receiver may, or
may not, match the wire colors of the
adaptor. Match adaptor and receiver wires
by function, disregarding color.
If your receiver does not have a Dimmer or
Illumination wire, tape off the Orange wire.
Connect the Black wire to Ground wire of
new receiver.
Connect all Black/White wires together and
secure to the chassis of the new receiver.
Individually tape off any unused wires.
Make final wiring connections following
instructions on the next page.
F.
Orange/Black - (not used - tape off)
Blue/White - Amplifier Turn-on
Subwoofer Input
