Receiver Wiring Adaptor
120 70-5514
Revision 01/28/16

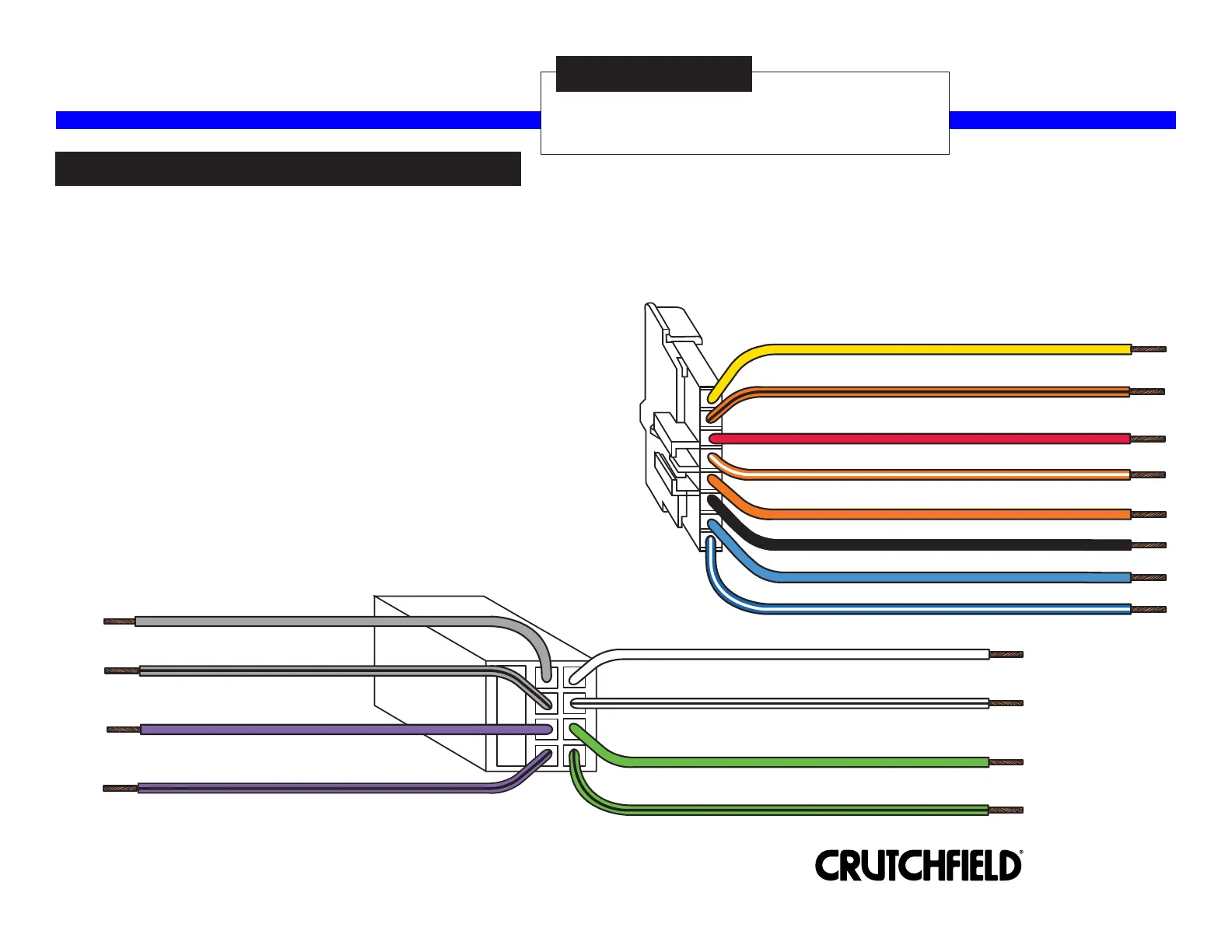

STEP 1 -- MATCH & CONNECT WIRES
*120705514*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Black - Chassis Ground
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have a Dimmer or Illumination wire, tape off the Orange/White or Orange wire in this adaptor (the one not used).
Individually tape off any unused wires.
See amplifier bypass instructions on the next page.
Make final wiring connections following instructions on page 3.
A.
B.
C.
Blue - Power Antenna
Blue/White - Amplifier Turn-On
POWER HARNESS
Red - 12 Volts Switched Power
Yellow - 12 Volts Constant Power
Orange - Illumination
White - Left Front Speaker Positive
Gray - Right Front Speaker Positive
Green - Left Rear Speaker Positive
Violet - Right Rear Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Orange/Black (not used, tape off)
Orange/White - Dimmer
D.
SPEAKER HARNESS
E.
Note: If vehicle is equipped with a factory amplifier,
it will not work if this wiring harness is used.
Copyright 2016 Crutchfield Corporation
