Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver).
The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function,
disregarding color.
Connect Black wire to Ground wire of new receiver.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.

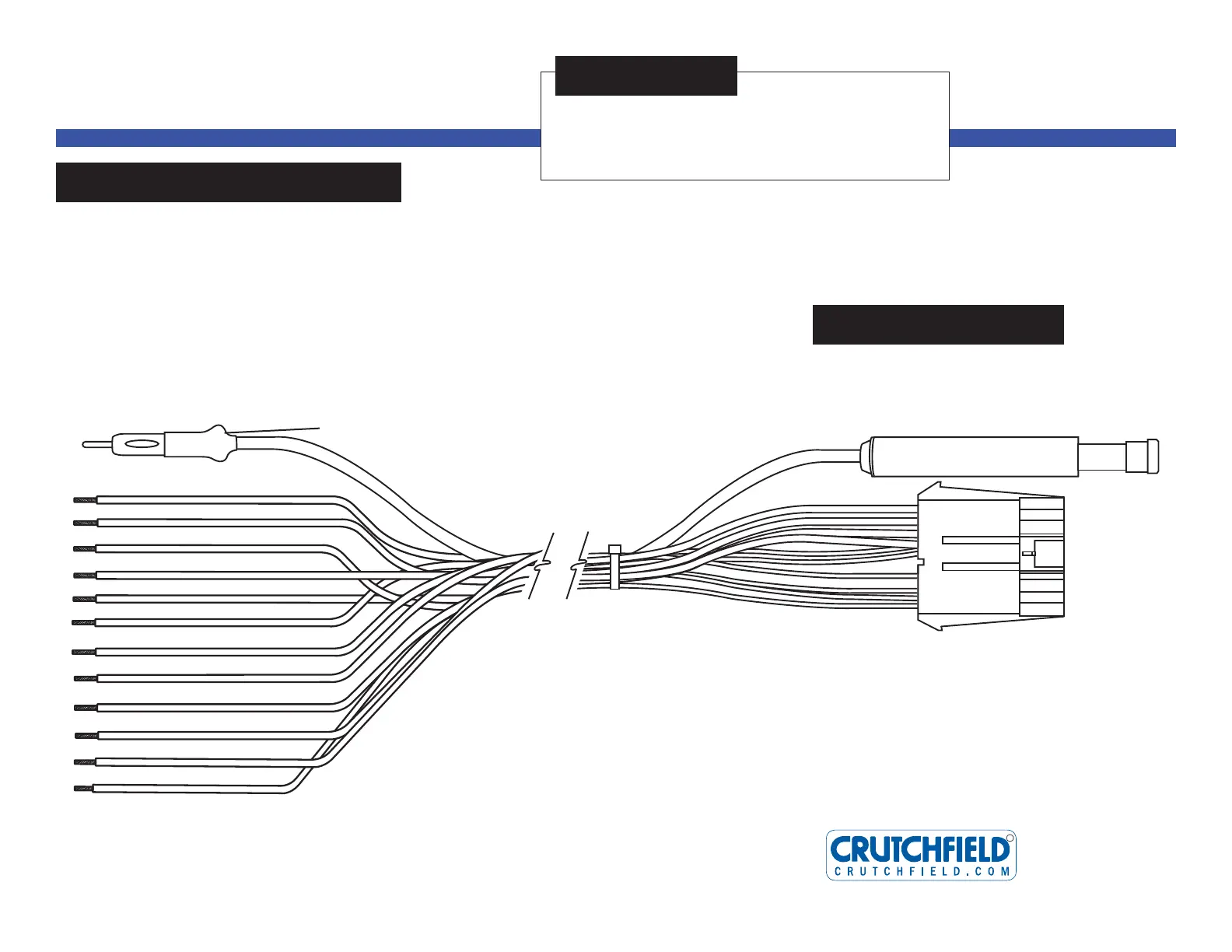

Wiring Adaptor
120 70-1856
Revision 06/22/09
STEP 1 -- CONNECT WIRES
Plug connectors into matching inputs.
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call:
Crutchfield Technical Support at 1-800-955-9094
*120701856*
IMPORTANT
STEP 2 -- INSTALL
Copyright 2009 Crutchfield Corporation
R
To Receiver
White - Left Front Speaker Positive
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
Green/Black - Left Rear Speaker Negative
White/Black - Left Front Speaker Negative
Black - Chassis Ground
Blue - Power Antenna
Yellow - 12 Volts Constant Power
at 1-888-955-6000
