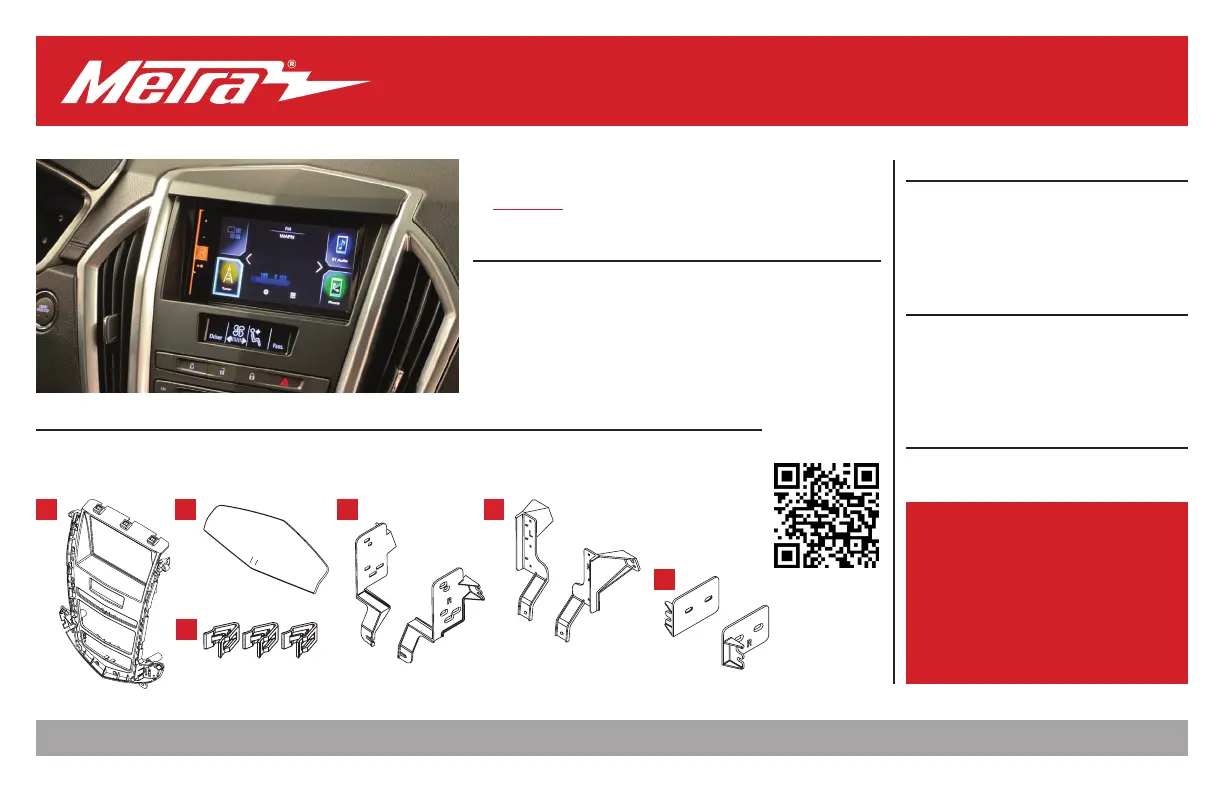

Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/13/24 INST107-GM5B
INSTALLATION INSTRUCTIONS
107-GM5B
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
KIT FEATURES (See Interface Installation section for more features)
• Designed for most shallow mount aftermarket radios and Pioneer
modular radios DMH-C2550NEX and DMH-C2500NEX.
Note: See manufacturer for current models.
• Retains factory control panel and display of climate functions and
vehicle customization menus on the 107-GM5B OLED screen.
• Retains audio control on steering wheel and radio control buttons on
the factory control panel.
KIT COMPONENTS
• A) Center dash panel • B) Top trim panel • C) Radio brackets • D) Pioneer display brackets • E) Pioneer chassis brackets
• F) Three panel clips (top panel) • Not shown: Interface and Wiring
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" Socket wrench • T-15 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-3
Kit Preparation ...................................................4-6
Kit Assembly: Shallow DDIN Radio Provision ......7
Pioneer Modular DDIN Radio Provision .......8
Axxess Interface Installation ...........................9-19
WIRING & ANTENNA CONNECTIONS
Wire harness: Axxess interface included
Antenna adapter: Included
Steering wheel control interface: Included
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
A CB D
F
Cadillac SRX 2010-2012
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
Product Info
E
