DESCRIPTION
The SHD-46VDx Kit provides an economical, integrated solution for any indoor flush
mount application for Hanwha XNB-6001 with SLA-T4680V lens head. Like all of
our products, this mount is designed for quick, simple installation and servicing.
SUGGESTED INSTALLATION EQUIPMENT
Phillips Head Screwdriver
#29 Drill Bit
Tool to cut hole pattern

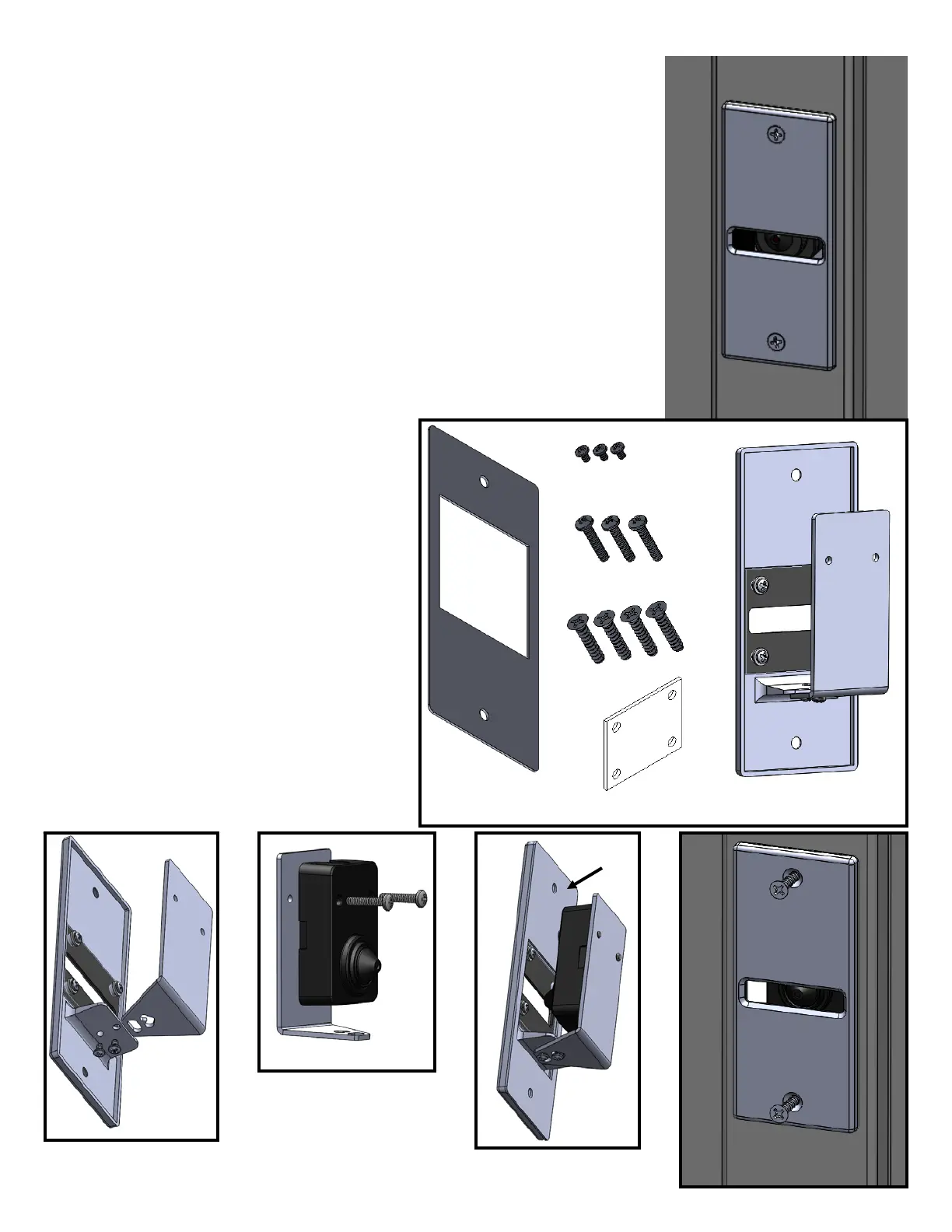

COMPONENT LIST [FIGURE 1]
A. Door Mullion Housing - 1
B. Neoprene Mullion Gasket - 1
C. Spare Camera Window - 1
D. Spare M3 x 4mm Screws - 3
E. M3 x 16mm Screws - 3
F. 6-32 x 3/4” Screws - 3
INSTALLATION
1. Carefully unpack box and verify that all compo-
nents listed in the component list are included.
2. Locate desired installation location, use the in-
cluded template to cut out the clearance hole and
drill pilot holes for the mounting screws.
3. Remove the pivot bracket from the faceplate as
seen in [FIGURE 2]
4. Route cable through hole in wall.
5. Secure the Hanwha camera to the pivot bracket
using the provided screws (E) as seen in
[FIGURE 3]
6. Secure pivot bracket back to faceplate and Install
Neoprene Gasket (B) as seen in [FIGURE 4].
7. Make all necessary connections and secure face-
plate to its location using the provided screws (F)
as seen in [FIGURE 5]
A
B
C
D
E
F
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 5
FIGURE 4
B
SHD-46VDE, SHD-46VDB INSTRUCTIONS
(Door Mullion Flush Mount)
