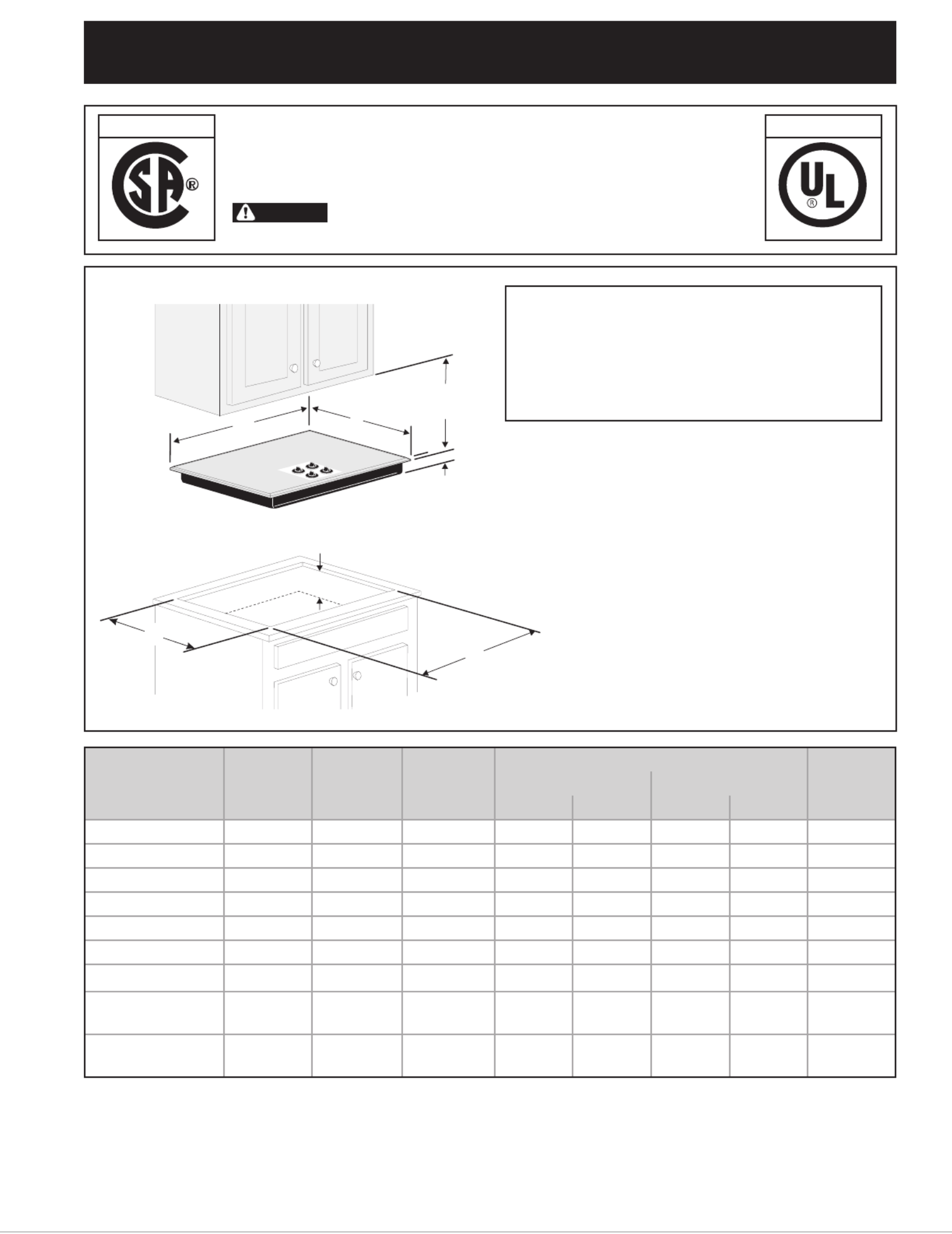

ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
A
F
B
C
D
E
All dimensions are in inches (cm).
Only some models are available in Canada.
*
Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the
junction box on the wall at the back of the cooktop.
P/N 318205403 (0904) Rev. C
English – pages 1-8
Español – pages 9-16
Français – pages 17-24
Cooktop Dimensions
IMPORTANT INSTALLATION‑INFORMATION
• Allelectriccooktopsrunoffasinglephase,three-wire
orfour-wirecable,240/208volt,60hertz,AConly
electrical supply with ground.
• Pleasenoteminimumdistancesbetweencooktopand
adjacent and overhead cabinetry is 30" (76.2cm).
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Cooktop Cutout Dimensions
Figure 1
30" Min. *
(76.2 cm)
Printed in China
MODEL A. LENGTH B. WIDTH C. DEPTH
CUTOUT DIMENSIONS F. DEPTH
BELOW
COOKTOP*
D. LENGTH E. WIDTH
MIN. MAX. MIN. MAX.
26" Coil Elements 25¾ (65.4) 219/16 (54.8) 3½ (8.9) 25 (63.5) 25 (63.5) 20½ (52.1) 20½ (52.1) 5½ (14)
30" Ceramic Glass 303/8 (77.8) 213/8 (54.4) 25/8 (6.7) 295
/8 (75.2) 297/8 (75.9) 20¼ (51.4) 20½ (52.1) 5 (12.7)
30" Coil Elements 30 (76.2) 21½ (54.6) 3 (7.6) 26¾ (67.9) 28¼ (71.8) 191/8 (48.6) 20 (50.8) 5 (12.7)
32" Ceramic Glass 32¼ (81.9) 20¼ (51.4) 3¾ (9.5) 31 (78.7) 31¼ (79.4) 19 (48.3) 19¼ (48.9) 5¾ (14.6)
24 (61.0) 23 (58.5) 23¼ (59.0)
36" Ceramic Glass 36¾ (93.5) 213/8 (54.4) 25/8 (6.7) 355
/8 (90.5) 361/8 (91.8) 20¼ (51.4) 20½ (52.1) 5 (12.7)
36" Coil Elements
(36" X 18") 36 (91.4) 18 (45.7) 37/8 (9.8) 34¼ (87) 343/8 (87.3) 165/8 (42.2) 16¾ (42.5) 57/8 (14.9)
36" Coil Elements
(36" x 21½") 36 (91.4) 21½ (54.6) 3 (7.6) 32¾ (83.2) 34¼ (87) 19 (48.3) 20 (50.8) 5 (12.7)
INSTALLATION AND SERVICE MUST BE PERFORMED
BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING
FOR YOUR SAFETY: Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
Canada United States
32" Coil Elements 32¼ (81.9) 20¼ (51.4) 3¾ (9.5) 31 (78.7) 31¼ (79.4) 19 (48.3) 19¼ (48.9) 5¾ (14.6)
24" Ceramic Glass 213/8 (54.4) 25/8 (6.7) 20¼ (51.4) 20½ (52.1) 5 (12.7)
