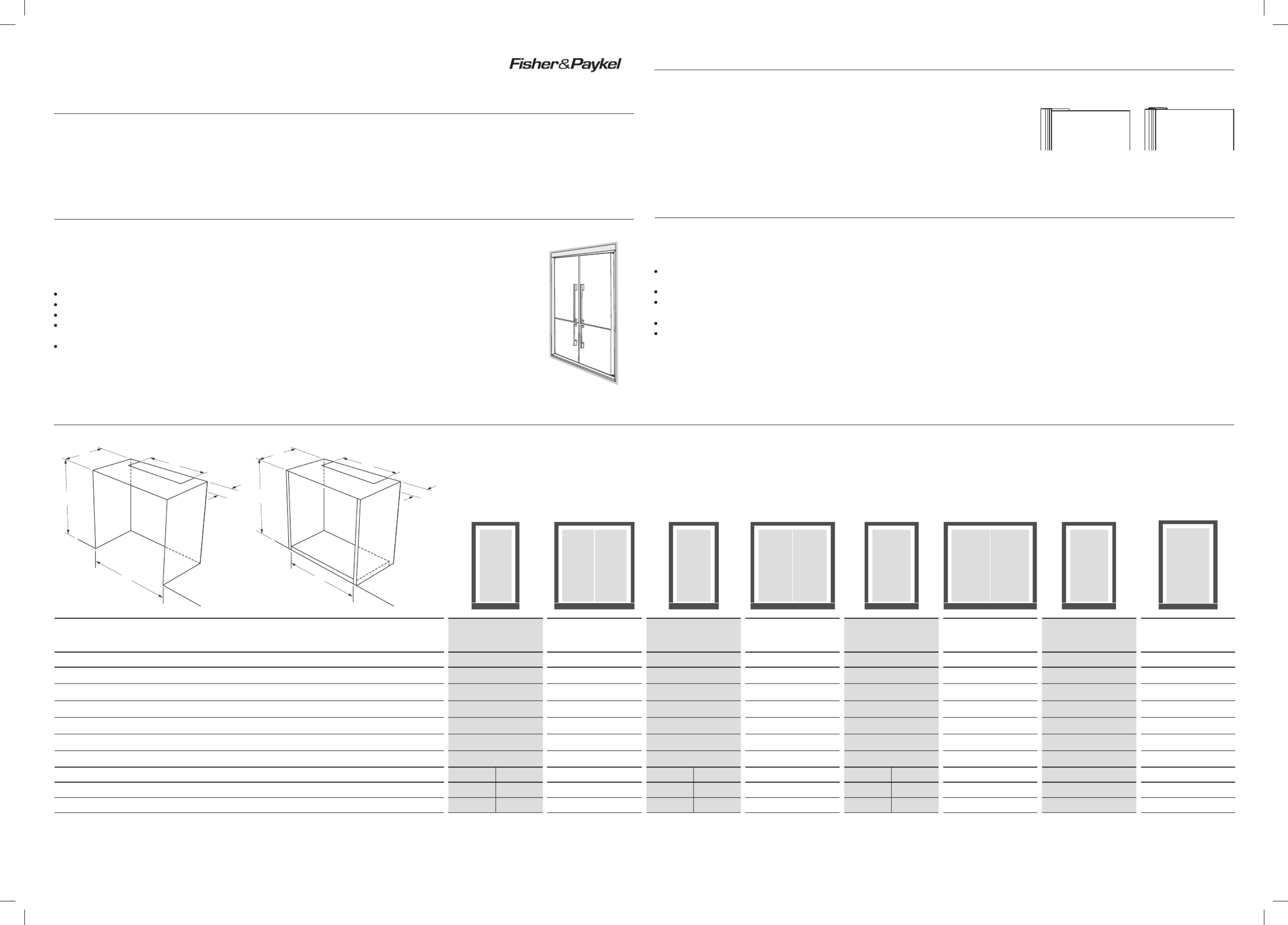

INSTALLATION INSTRUCTIONS
NZ AU GB AE HK SG IE EU CN IN
Refrigerator Surround Kit
E402B, RF402B, E442B, RF442B, E522B, RF522B, RF522W, RF522A, RF540A and RF610A models
continued >
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model
and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1 Check that the internal cabinetry dimensions are correct (see Diagram 1a/b).
2 Unpack the refrigerator as per instructions on carton.
IMPORTANT!
Due to the size of the refrigerator(s), it is essential that assembly of the surround kit be undertaken with a minimum of two able-
bodied persons.
It is important to include adequate venting to the top of the refrigerator, to ensure efficient operation.
The installation of the refrigerator(s) can be at floor level as shown in Diagram 1a or installed above the toe kick board as in
Diagram1b.
Rollers and feet must be fitted.
Refrigerators installed above the toe kit should have a floor base constructed to support the total weight of the loaded
refrigerator(s) placed on it.
The placement of the 16mm MDF or plywood under the refrigerator(s) on either installation type is to allow the fitment of the bottom
trim that covers it. It is optional.
4
GETTING STARTED
This kit is designed to be used with models with a refrigerator height of between: 1695 – 1806mm with curved or flat door styling.
You can find the part number for each installation in Section 2.
To give the most integrated look, the kitchen cabinetry should be flush with the front of the refrigerator door.
Tools required (not included)
No. 2 drill bit – long.
Electric drill.
Phillips screwdriver.
1 x 16mm piece of MDF the same size as the base of the cavity (optional). Not needed if refrigerator is sitting
directly on the floor and not on raised toe kickarea.
Joiner kit (part number 819264) required if joining two refrigerators side by side.
1
REFRIGERATOR SURROUND KIT
E402B
RF402B
E402B
RF402B
E402B
RF402B
E442B
RF442B
E442B
RF442B
E442B
RF442B
E522B
RF522B
RF522W
E522B
RF522B
RF522W
E522B
RF522B
RF522W
RF522A RF540A
RF610A
REFRIGERATOR MODEL 1 X E402B
1 X RF402B
2 X E402B
2 X RF402B
1 X E442B
1 X RF442B
2 X E442B
2 X RF442B
1 X E522B
1 X RF522B
1 X RF522W
2 X E522B
2 X RF522B
2 X RF522W
1 X RF522A
(French door model)
1 X RF540A
1 X RF610A
(French door model)
CAVITY DIMENSIONS (Flush to edge of door) mm mm mm mm mm mm mm mm
AWidth 807 10721467 1557 962 1777 962852
BDepth* 700 700 700 700 700 700 700 700
C 1Height** 1790 1790 1790 1790 1790 1790 1790 1875
C 2Height*** 1806 1806 1806 1806 1806 1806 1806 1891
DAir vent depth 200 200 200 200 200 200 200 200
EAir vent width 502 1162 1252547 657 6571472 767
KIT PART NUMBERS LH RH LH RH LH RH
Brushed Stainless 24371 24372 24373 24375 2437624374 24377 24381 2438024378 24379
Plus Joiner Kit 819264 819264 819264
* Depth is a minimum requirement.
** Height is without 16mm MDF packer.
*** Height is with 16mm MDF packer.
Cavity dimensions above are to be used as dimensions.minimum
A
B
D
E
C
1
Diagram 1a
Refrigerator at floorlevel
B
E
D
A
C
2
Diagram 1b
Refrigerator above toekick
Diagram 1
2
KIT PART NUMBERS AND CAVITY DIMENSIONS TABLE
All dimensions are internal or cavity dimensions.
The refrigerator can be installed:
1 In a cavity with 16mm panel (bottom trim attached), or in a cavity where the product
is at floor level (no bottom trim). (Diagram 1a).
2 In a cavity with a toe kick under the product with the bottom trim fitted to the base
(Diagram 1b).
3 Check whether your fridge has hinges concealed by the front of the fridge door.
For refrigerators / freezers where the hinge is not concealed by the door refer to
spare parts for the correct kit number. 820413 D should list non concealed number kit.
3
BEFORE INSTALLATION
Concealed hinge Non concealed hinge
