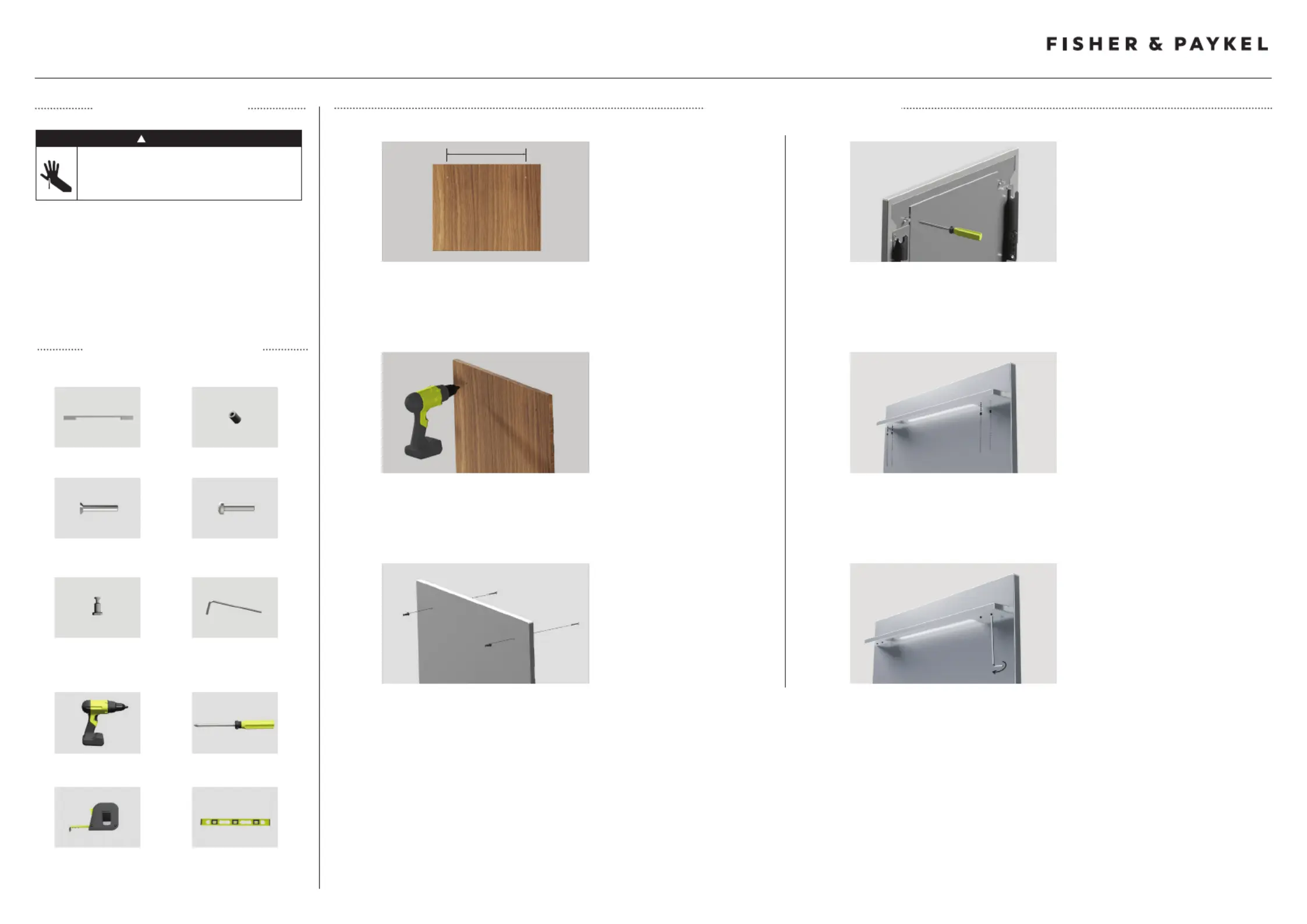

INSTALLATION GUIDE
Accessory handles
FITTING HANDLE TO PANEL
431059A 10.22 NZ AU HK SG TW UK IE EU CN
Custom panel installations:
Mark the handle location on the
panel. Ensure distance between
holes is 432mm.
1
SAFETY & WARNINGS
2
3
Custom panel installations:
Drill the holes using a 6mm drill
bit. Counterbore from the rear.
Align the pin locks to the front
of the panel before inserting the
supplied screws from the rear of
the panel.
Custom and Dishwasher panels:
Countersunk screw
DishDrawer panels:
Pan head screw
Secure pin locks by tightening
the screws using a crosshead
driver. Do not overtighten.
4
5
6
Loosen the grub screws and fit
the handle onto the pin locks.
Tighten the grub screws using
the supplied hex key.
For more information, visit www.fisherpaykel.com
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges may be sharp.
z
For products that are not front-mounted, installation
must be carried out by a Fisher & Paykel trained and
supported service technician.
z
Ensure all packaging is removed and disposed
of responsibly.
z
Installation of this product requires basic
mec ls. hanical skil
z
Ensure product is installed with the correct tools to
avoid personal injury or damage to the appliance.
z
Take care not to scratch the door with the supplied
Hex key when tightening the screws.
COMPONENTS REQUIRED
2mm hex key (1)
Grub screw (2)
Pin lock (2)
M5x25mm countersunk
screw (2)
Handle (1)
Crosshead driverPowered driver
Tape measure
M5x25mm pan head
screw (2)
Supplied
Not supplied
Level
432mm
