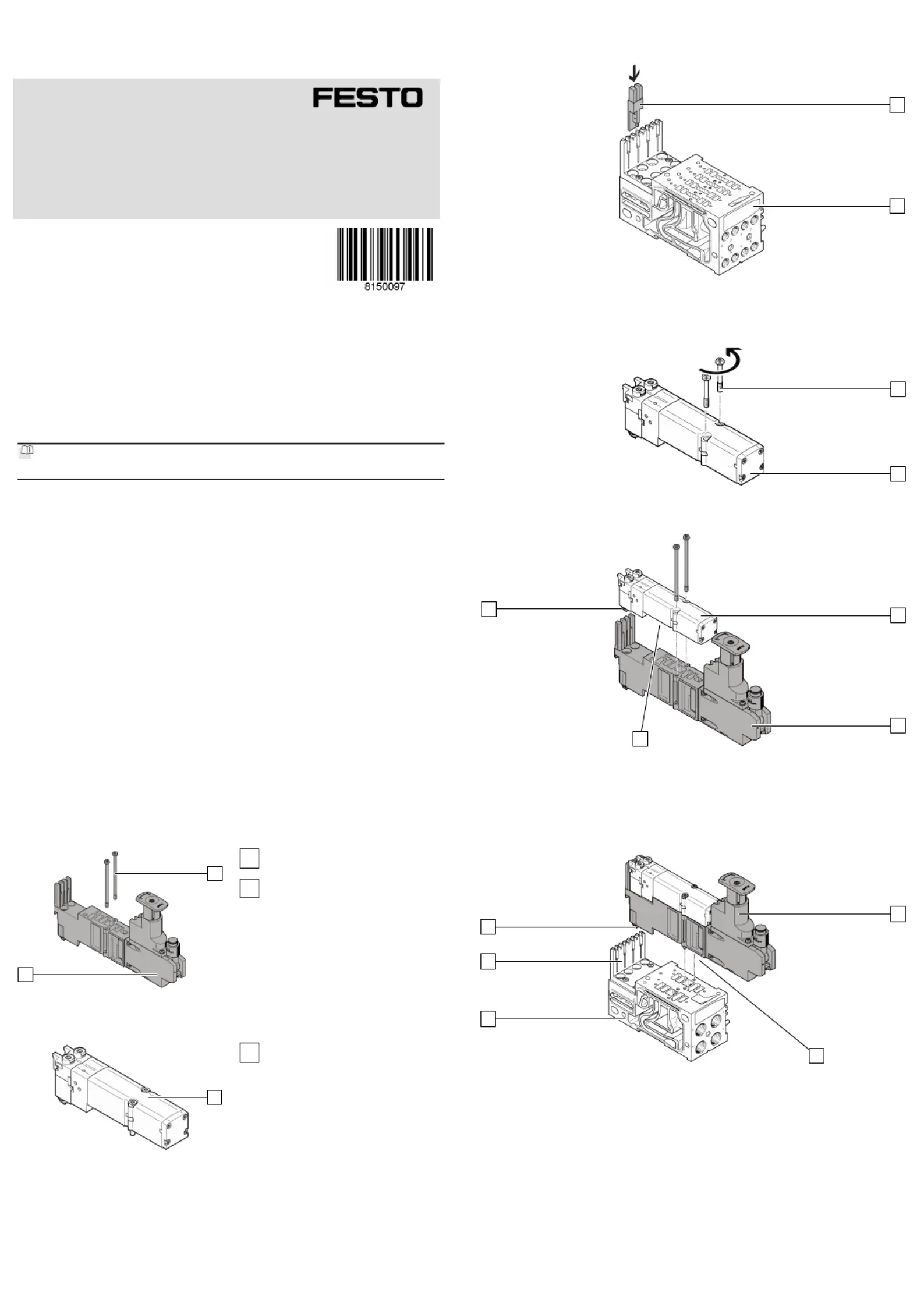

VMPA...-B8-R...
Regulator plate
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Assembly instructions
8150097
2021-08d
[8150099]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1 Safety instructions
–
Only use the product in its original condition without unauthorised modifica-
tions.
–
Only use the product if it is in perfect technical condition.
–
Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
2.2 Intended use
The regulator plate regulates the operating pressure or working pressure of the
solenoid valves.
2.3
Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have knowledge
and experience in pneumatics.
3 Additional information
–
Contact the regional Festo contact if you have technical problems
è
www.festo.com.
4 Product Range Overview
4.1 Scope of delivery
1
2
Fig.1
1
Regulator plate (1x)
VMPA...-B8-R...
2
Screw (2x)
4.2 Not in scope of delivery
3
Fig.2
3
Solenoid valve (1x)
VMPA...-M1H-...-PI
5 Assembly
5.1 Preparation for VMPA1-B8-R... and VMPA14-B8-R...
4
5
Fig.3
• Push the fibre optic cable extension onto the electronics module .4 5
5.2 Assembly
3
6
Fig.4
•
Unscrew the captive screws of the solenoid valve .6 3
1
3
7
8
Fig.5
1.
Check that the conical ring seal is positioned correctly.7
Ä
The tapered side is at the bottom
2.
Check that the seal is positioned correctly.8
Ä
The seal is in the slot of the solenoid valve 3
3. Place the solenoid valve on the regulator plate .3 1
1
5
9
10
11
Fig.6
1. Check that the conical ring seal is positioned correctly.9
Ä
The tapered side is at the bottom
2. Check that the seal is positioned correctly.aJ
Ä
The seal is in the slot of the regulator plate 1
3. Place the regulator plate on the electronics module .1 aA
