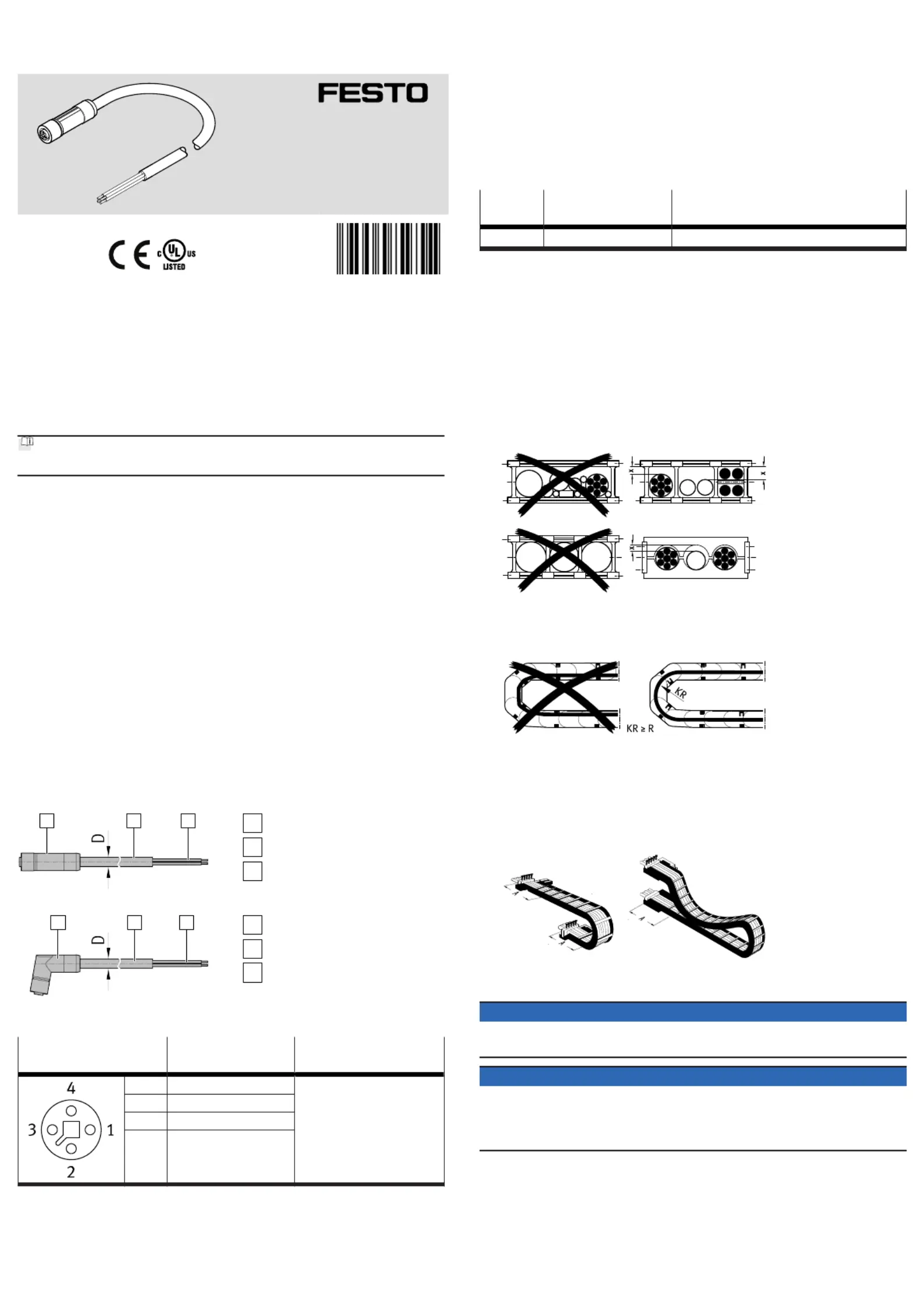

NEBL-T12...4-E-...-LE4
Connecting cable
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Assembly instructions
8187643
2023-03a
[8187645]
8187643
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1
Safety instructions
–Do not connect or disconnect the push-in connector while the voltage is live.
–
Do not wire or disconnect an open cable end when powered.
–Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
The connecting cable connects electric drives to the power supply at the M12T-
coded plug.
2.3
Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel are trained in
electrical engineering.
3 Additional information
–
Accessories
è
www.festo.com/catalogue.
4 Structure
4.1
Product design
1 23
Fig. 1:
NEBL-T12G4-E-...-LE4
1
Socket M12x1, T-coded
2
Core (4x)
3
Cable
1 23
Fig. 2:
NEBL-T12W4-E-...-LE4
1
Socket M12x1, T-coded
2
Core (4x)
3
Cable
4.2 Contact assignment
Electrical connection1
Field device side
Insulated wire
1)
Electrical connection2
Controller side
1 BN Open end
2 WH
3 BU
4 BK
1)
Colour code in accordance with IEC 60757:2021-06
Tab. 1: Contact assignment
5 Assembly
5.1 Assembly, field device side
1. Align the socket to fit the plug.1
2. Connect the socket to the plug.1
3. Tighten the screw-type lock of the socket . Tightening1
torque:0.4Nm±55%
5.2
Assembly, controller side
1. Strip and assemble the cable sheath and insulated wires as required.
2.
Connect the insulated wires in accordance with the contact assignment.
5.3
Wiring
Character-
istic
Cable characteristic Wiring
-E Suitable for energy chains In energy chain or flexible
Tab. 2: Wiring
5.4
Strain relief
Strain relief for movable wiring:
• Fix the cable sheath in the area of the wire ends.
Ä
The insulated wires must not be subjected to force.
5.5
Mounting in energy chain
1. Lay out the energy chain lengthways.
2. Place the cables in the energy chain without twisting them.
3. Separate cables from each other using separators/drilled holes.
4.
Do not bind cables in bundles.
5.
Maintain spaceX. X 10%of the cable diameterD.>
With the energy chain hanging vertically: increase the spaceX.
Align the energy chain in the working position:
–Make sure that the radius is greater than the bending radiusR of the
cables.
–The cables can move freely in the bending radius KR of the energy chain.
Ä
The cable movement is not forced by the energy chain.
7.
Mount the energy chain corresponding instruction manual.è
Fasten the cables:
–
for short energy chains with a length 1m at both ends of the energy<
chain
–for long sliding energy chains with a length 1m at the driver end only>
9.
Do not move cables all the way to the fastening point.
Ä
The mounting spaceA between the fastening point and bending move-
ment is maintained.
NOTICE
Damage to cables if the chain breaks.
• Replace cables after a chain break.
NOTICE
Malfunction and material damage due to vertically suspended cables.
The cables stretch.
• Regularly check the length of the cables.
•
Readjust the cables if required.
