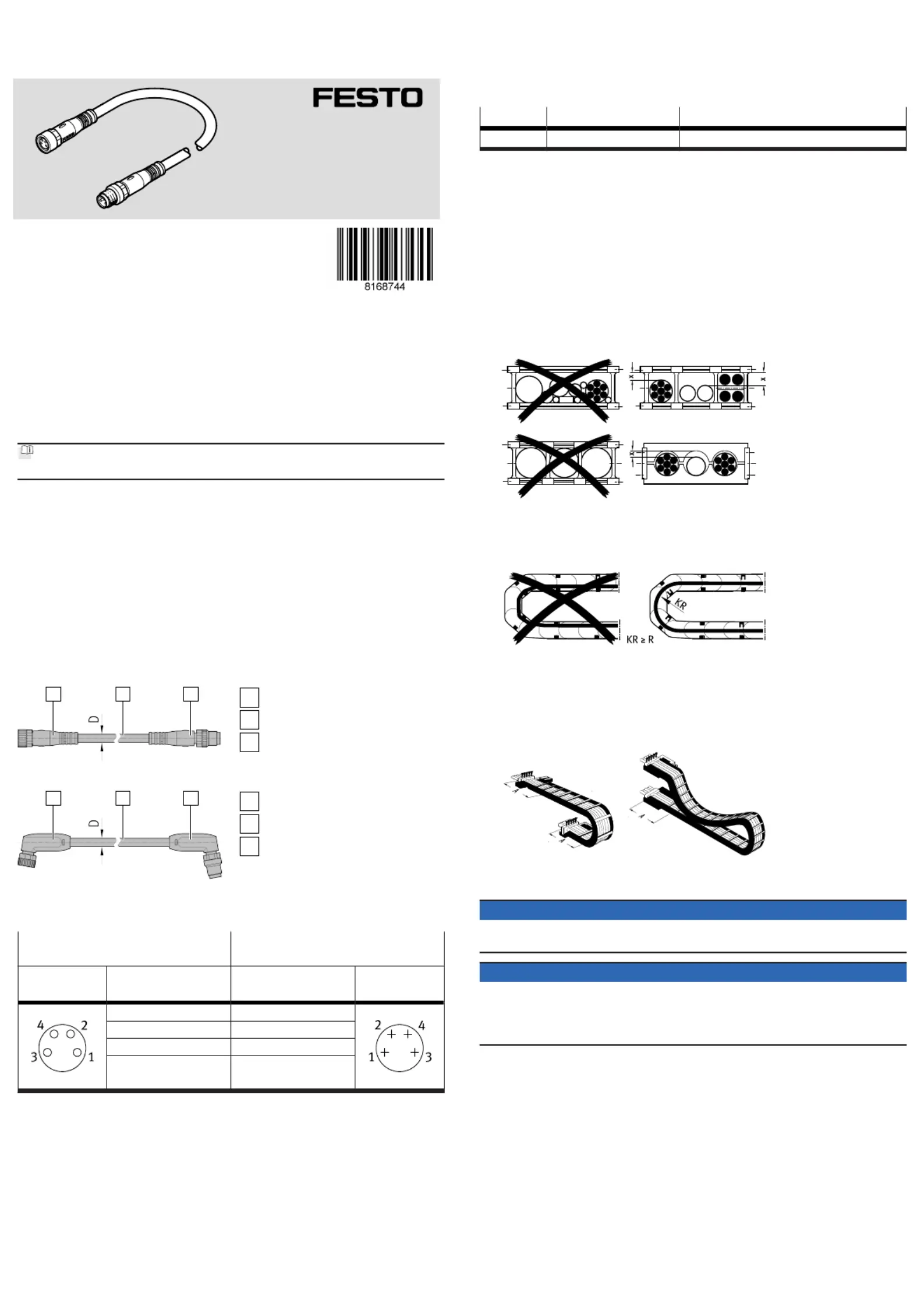

NEBL-M8...4-E-...-M8...4
Connecting cable
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Assembly instructions
8168744
2022-02b
[8168746]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1
Applicable documents
All available documents for the product
è
www.festo.com/sp.
2 Safety
2.1 Safety instructions
–
Do not connect or disconnect the push-in connector while the voltage is live.
–Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
Connecting cable for the power supply for applications with which a low voltage
drop is required, including for longer cables, e.g. for CPX-AP.
3
Structure
3.1 Product design
1 23
Fig. 1:
NEBL-M8G4-E-...-M8G4
1
Socket M8x1, A-coded
2
Plug M8x1, A-coded
3
Cable
1 23
Fig. 2:
NEBL-M8W4-E-...-M8W4
1
Socket M8x1, A-coded
2
Plug M8x1, A-coded
3
Cable
3.2 Contact assignment
Electrical connection 1
Field device side
Electrical connection 2
Controller side
1
Socket
Pin Pin 2
Plug con-
nector
1 1
2 2
3 3
4 4
Tab. 1:
Contact assignment
4
Assembly
4.1 Application of assembly tools
•
Use only a suitable tool with torque function for the screw-type lock with
hexagon and longitudinal knurl.
4.2 Mounting electrical connection 1
1. Align the socket to fit the plug.1
2.
Connect the socket to the plug.1
3. Tighten the screw-type lock of the socket . Tightening torque:1
0.2 Nm ± 50%
4.3 Mounting electrical connection 2
1. Align the plug to match the socket.2
2. Insert the plug into the socket.2
3. Tighten the screw-type lock of the plug . Tightening torque: 0.2 Nm ± 50% 2
4.4 Wiring
Feature Cable characteristic Wiring
-E Suitable for energy chains in energy chain or flexible
Tab. 2: Wiring
4.5 Strain relief
Strain relief for movable wiring
• Install the strain reliefs and mountings over a wide area to prevent damage to
the internal structure and outer cover.
4.6 Mounting in energy chain
1. Lay out the energy chain lengthways.
2.
Place the cables in the energy chain without twisting them.
3. Separate cables from each other using separators/drilled holes.
4. Do not bind cables in bundles.
5. Maintain space X. X 10% of the cable diameter D.>
With the energy chain hanging vertically: increase the space X.
Align the energy chain in the working position:
–
Make sure that the radius is greater than the bending radius R of the
cables.
–
The cables can move freely in the bending radius KR of the energy chain.
Ä
The cable movement is not forced by the energy chain.
7.
Mount the energy chain corresponding instruction manual.è
Fasten the cables:
–for short energy chains with a length 1 m at both ends of the energy chain<
–for long sliding energy chains with a length 1 m at the driver end only>
9.
Do not move cables all the way to the fastening point.
Ä
The mounting space A between the fastening point and bending move-
ment is maintained.
NOTICE
Damage to cables if the chain breaks.
• Replace cables after a chain break.
NOTICE
Malfunction and material damage due to vertically suspended cables.
The cables stretch.
• Regularly check the length of the cables.
•
Readjust the cables if required.
