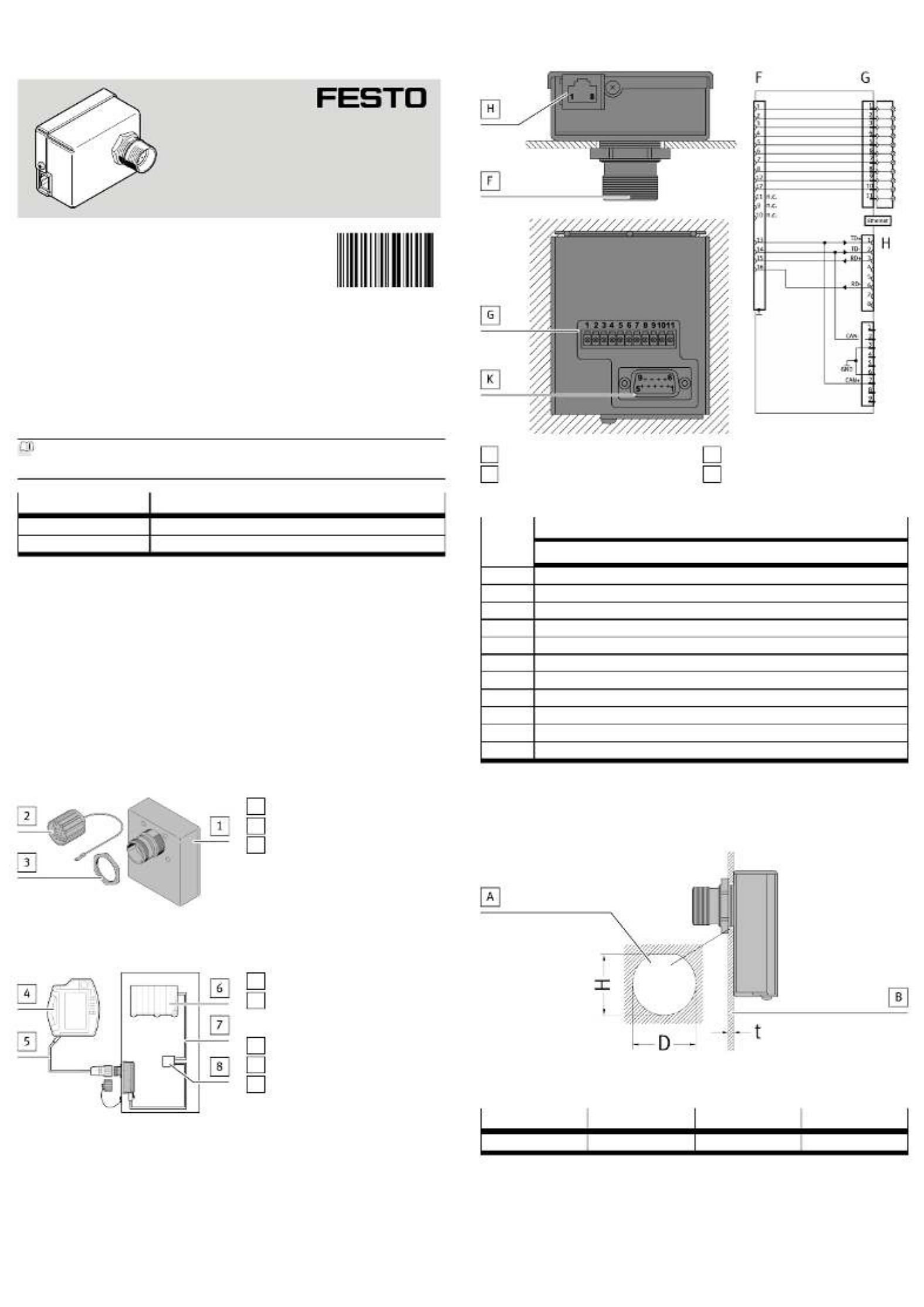

Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product www.festo.com/sp.è
Document Product
User documents CDSA-D3-RV
User documents CPX-E-CEC-M1
Tab. 1
2 Safety
2.1 Safety instructions
– Only mount the product on components that are in a condition to be safely
operated.
2.2 Intended use
Connection of an operator unit CDSA-D3-RV with a connecting cable
NEBC-R3Z12G20-KH -...- SBS-RSG17-ET-S1 to a controller CPX-E-CEC-M1......via
Ethernet.
3 Product overview
3.1 Product Range Overview
3.1.1 Scope of delivery
1Interface housing CAMI-C (1x)
2Jumper plug CAMF-B (1x)
3Nut (1x)
Fig. 1
3.1.2 Not in scope of delivery
4Operator unit CDSA-D3-RV
5Line
NEBC-R3Z12G20-KH-...-SBS-
RSG17-ET-S1
6Controller CPX-E-CEC-M1...
7Ethernet cable
8Ethernet switch
Fig. 2
3.2 Configuration
3.2.1 Contact assignment
FRound plug 17-pin
GTerminal strip 11-pin
HEthernet RJ45
Knot used
Fig. 3
Terminal strip connection [G]Pin
CAMI-C/CPX-E-CEC-M1...
1 24 VDC
2 GND_IN
3 EMERGENCY STOP, circuit 2
4 EMERGENCY STOP, circuit 2
5 EMERGENCY STOP, circuit 1
6 EMERGENCY STOP, circuit 1
7 Permission, circuit 1, positive
8 Permission, circuit 1, negative
9 Permission, circuit 2, positive
10 Permission, circuit 2, negative
11 not used
Tab. 2
4 Assembly
4.1 Preparation
Fig. 4
• Punch out opening [A] on the control cabinet housing [B].
Dimensions D H t
[mm] 25+0.1 24 £5
Tab. 3
8130959
CAMI-C
Interface housing
8130959
2020-07b
[8130961]
Assembly instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
