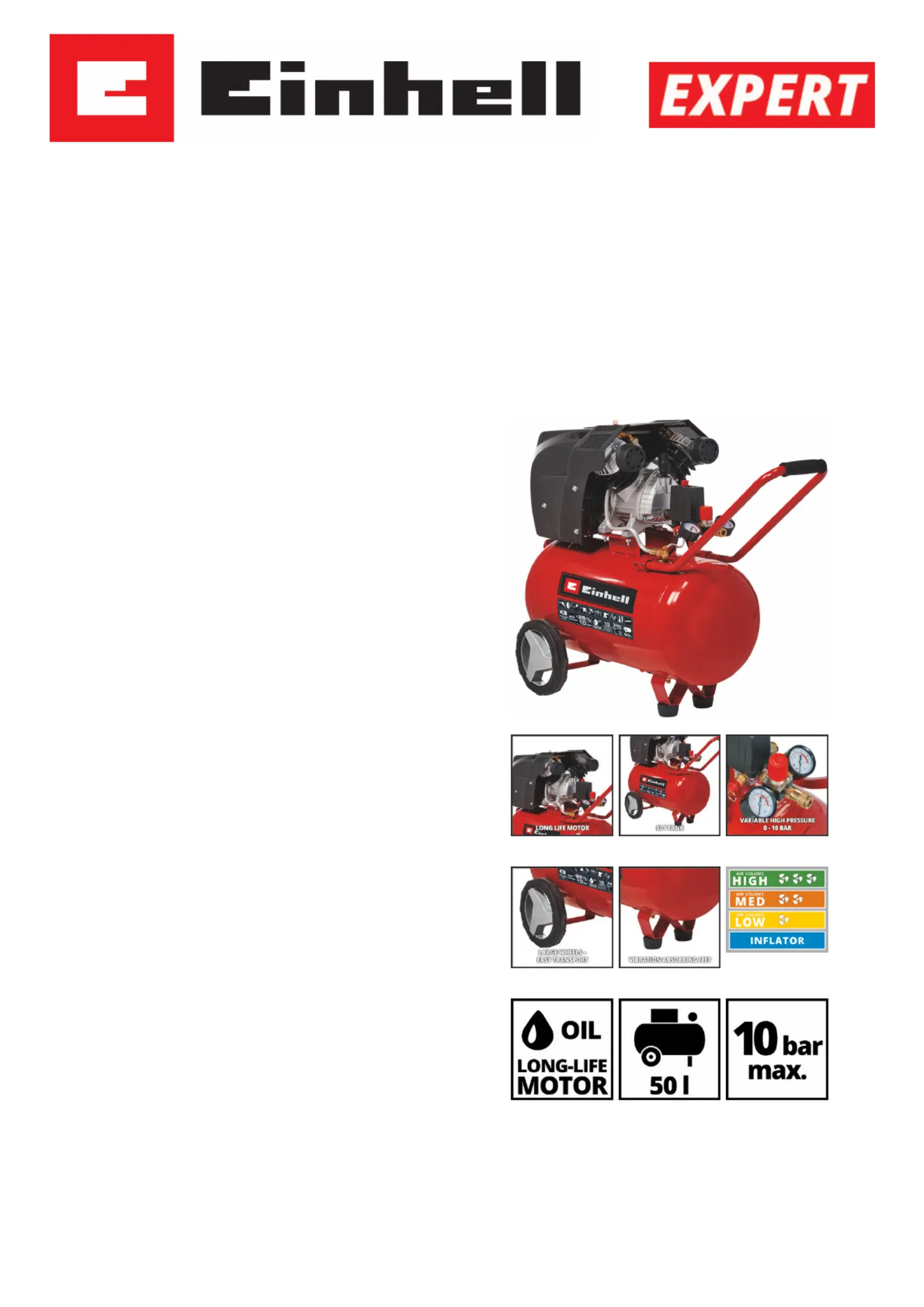

The Einhell TE-AC 360/50/10 V compressor, with 2,200 W of power, has a max. operating pressure of 10 bar, adjustable with a pressure reducer, and
a high air delivery rate thanks to the double compressor unit. The 50l tank has sucient air reserves. The oil lubrication together with an inspection
window for checking the oil level ensures a long life. There is an integrated pressure gauge and quick-release coupling for controlled working pressure
& uncontrolled tank pressure. For safety there is a safety valve. The drain plug enables easy maintenance. Stability during the operation is ensured by
the vibration-damped feet, and mobility by the large wheels & transport bar. Includes a 10 years warranty against rusting through of the tank.
Air Compressor
TE-AC 360/50/10 V; EX; CH
Item No.: 4010474
Ident No.: 11019
Bar Code: 4006825648119
Features & Benets
Oil lubrication contributes to long life-
Oil level check through inspection window-
The 50l tank has sucient air reserves-
High air delivery rate through double compressor unit-
Applications up to 10 bar can be set using the pressure reducer-
Pressure gauge & quick-release coupling for regulated pressure-
Pressure gauge & quick-release coupling for unregulated pressure-
Large wheels and a transport bar for an easy transport-
Vibration-damped feet for standing securely-
10 years warranty against rusting through of the tank-
Non-return valve, safety valve-
The drain plug enables user-friendly maintenance-
Technical Data
- Mains supply 220-240 V | 50 Hz
- Max. engine power 2200 W (3 PS)
- Engine speed 2850 min^-1
- Pump speed 2850 min^-1
- Suction capacity 360 L/min
- Output power at 0 bar 255 L/min
- Output power at 4 bar 195 L/min
- Output power at 7 bar 150 L/min
- Max. operating pressure 10 bar
- Tank volume 50 L
- Number of cylinders 2 Pieces
Logistic Data
- Product weight 42.2 kg
- Gross weight single packaging 46.05 kg
- Dimensions single packaging 765 x 370 x 740 mm
- Pieces per export carton 1 Pieces
- Gross weight export carton 46.05 kg
- Dimensions export carton 770 x 380 x 760 mm
- Container quantity (20"/40"/40"HC) 126 | 270 | 0
Illustrations can contain accessories, which are not included in standard extent of delivery
Illustration similar (in design), production-wise modications reserved
GS mark belongs to the product itself only, excluded accessory
Generated at: 26.08.2020 15:59
Page 1
Problemløsning Einhell TE-AC 360/50/10 V
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Vekselstrømsindgangsspænding: | 220 - 240 V |
| Vekselstrømsindgangsfrekvens: | 50 Hz |
| Vægt: | 42200 g |
| Velegnet til: | Universel |
| Produktfarve: | Rød |
| Motoreffekt: | 2200 W |
| Pakkevægt: | 46005 g |
| Pakkedybde: | 370 mm |
| Pakkebredde: | 765 mm |
| Pakkehøjde: | 740 mm |
| Maksimalt driftstryk: | 10 bar |
| Strømkilde: | Vekselstrøm |
| Styrehjul: | Ja |
| Håndtag: | Ja |
| Antal cylindre: | 2 |
| Indtagelse kapacitet: | 360 l/min |
| Lufttank kapacitet: | 50 L |
| Pumpemotor hastighed: | 2850 rpm |
| Antal hjul: | 2 hjul |
| Garantiperiode: | 10 År |
