Side 1/7

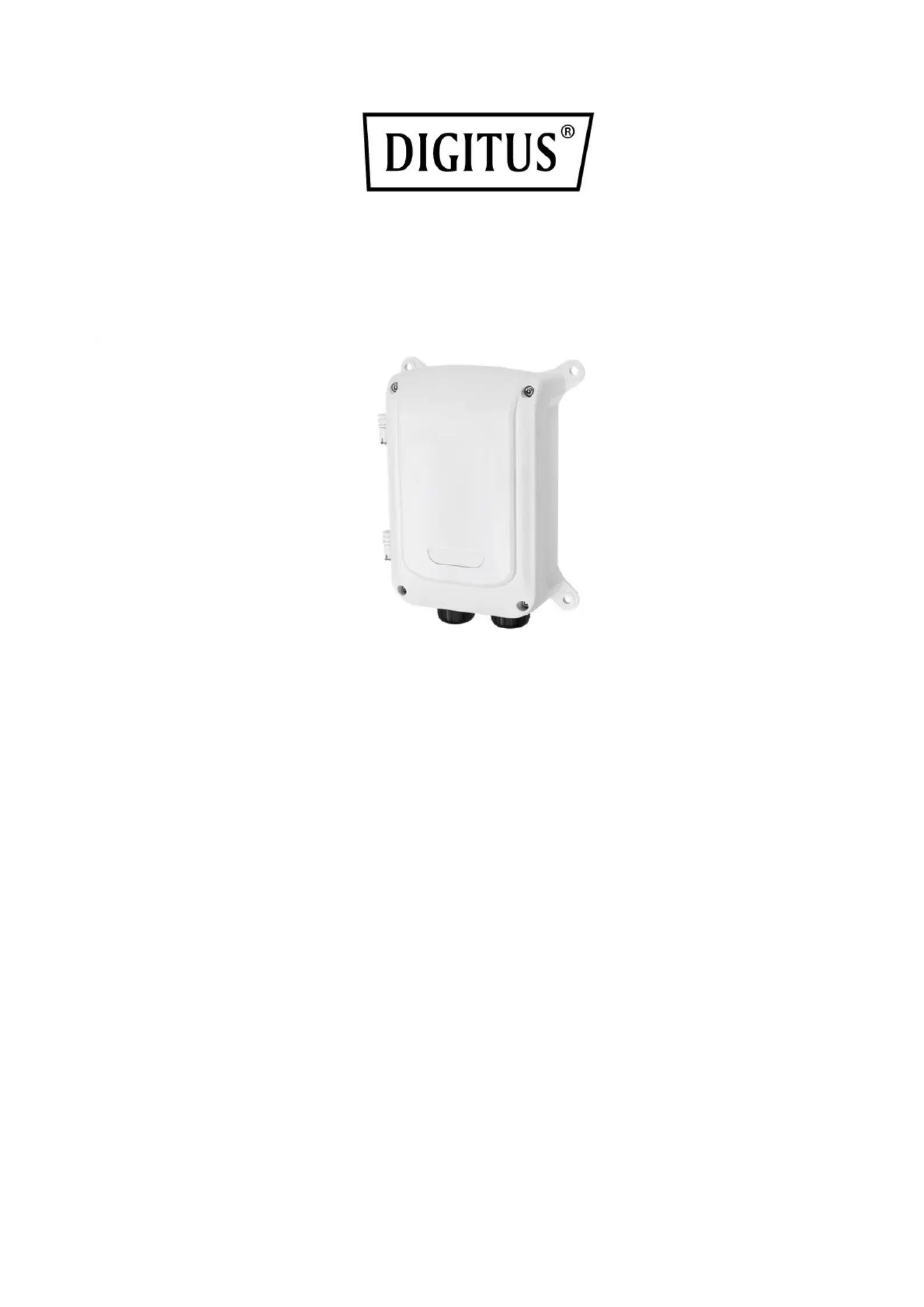

Outdoor 4-Port Fast Ethernet
PoE Switch + 1 Uplink Port
Quick Installation Guide
DN-95345
Introduction
The DIGITUS® outdoor PoE switch is a high quality PoE switch in a
weatherproof housing with the IP67 protection class.The housing is very
sturdy and conforms to the IK10 vandalism protection class. The PoE switch
offers a maximum range of up to 250 meters for PoE 802.3af devices and up
to 200 meters for PoE 802.3at devices with a transmission rate of 10Mbps.
When using the standard 100m range, the transmission rate is 100Mbps.
This outdoor switch serves as an all-in-one device that is ready for use
immediately after connecting it to the mains voltage. The device requires no
settings to be made thanks to plug and play. If you you’re your PoE devices
into a free PoE port, the switch will automatically detect power supply and
PoE mode. The all-in-one solution for outdoor PoE applications requires no
separate power supply and no external overvoltage protection.
Problemløsning Digitus DN-95345
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Kode for international beskyttelse (IP): | IP67 |
| Vekselstrømsindgangsspænding: | 100 - 240 V |
| Bredde: | 199.9 mm |
| Dybde: | 130 mm |
| Højde: | 255.2 mm |
| Vægt: | 3200 g |
| Brugervejledning: | Ja |
| Produktfarve: | Hvid |
| Pakkevægt: | 2920 g |
| Pakkedybde: | 188 mm |
| Pakkebredde: | 258 mm |
| Opbevaringstemperatur (T-T): | -40 - 85 °C |
| Relativ luftfugtighed ved drift (H-H): | 5 - 95 % |
| Driftstemperatur (T-T): | -40 - 60 °C |
| Netværksstandarder: | IEEE 802.3af |
| Oprindelsesland: | Taiwan |
| Strøm over Ethernet (PoE): | Ja |
| Ethernet-grænsefladetype: | Hurtigt ethernet |
| Switch-type: | Ikke administreret |
| Total Power over Ethernet (PoE): | 70 W |
| Power over Ethernet (PoE) effekt pr. port: | 30 W |
| 10G understøttelse: | Ingen |
| VLAN understøttelse: | Ingen |
| Basis omskiftning RJ-45 Ethernet porte, antal: | 4 |
| Basis omskiftning RJ-45 Ethernet porttype: | Fast Ethernet (10/100) |
| MAC adresselabel: | - entries |
| Switch kapacitet: | 1 Gbit/sek. |
| Power over Ethernet (PoE) porte, antal: | 4 |
| Kode i den britiske toldtarif: | 85176200 |
| Pakkevolumen: | 15278.8 cm³ |
