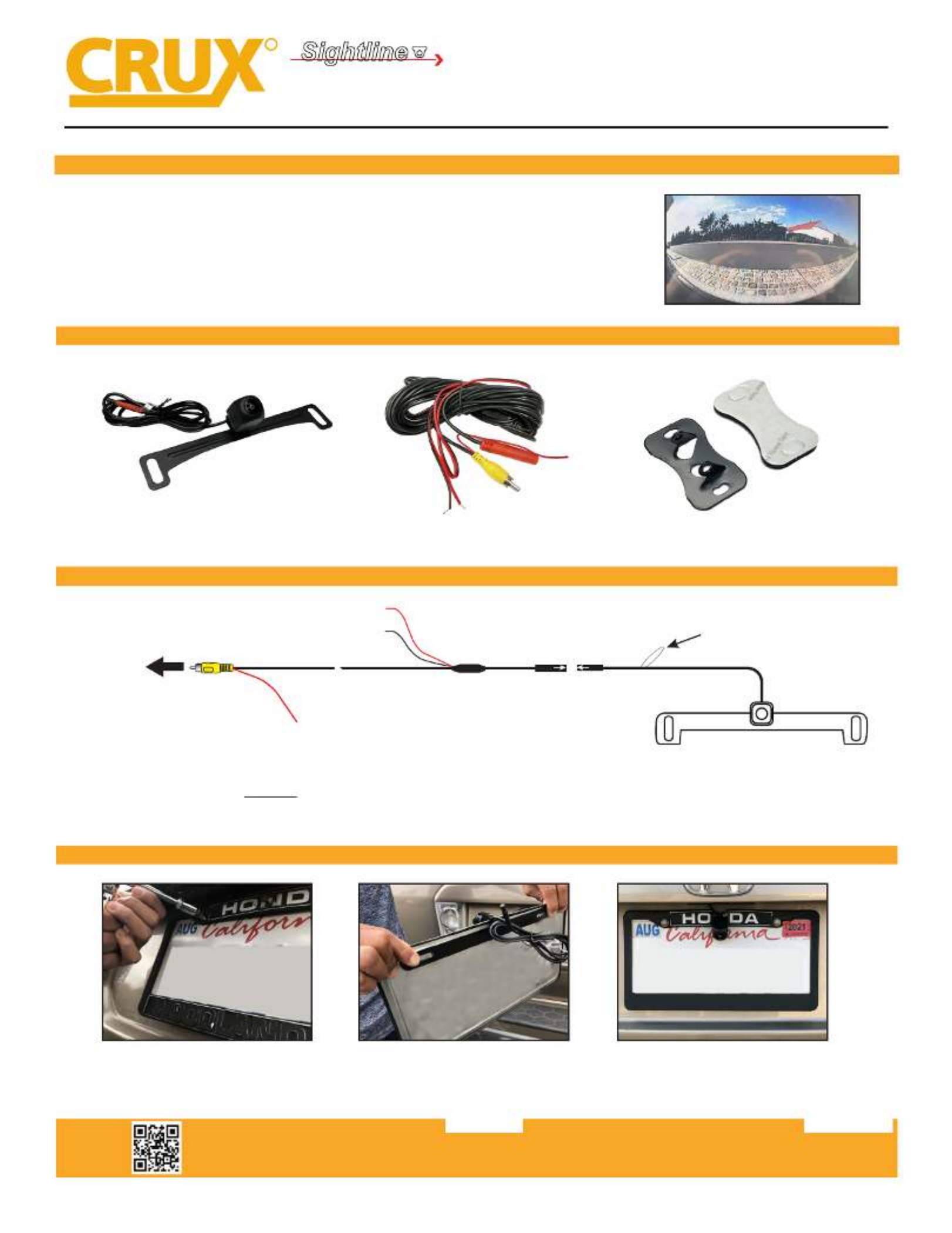

CLP-180
Super Wide Angle License Plate Camera
with 720p AHD Sensor and180 Degree Viewing Angle
1
- 180 degree viewing angle
- 720p AHD chipset for a clearer image
- Low light sensitivity
- With optional parking guide lines
- Includes a license plate and buttery mount for mounting exibility
PRODUCT FEATURES:
PARTS INCLUDED:
INSTALLATION DIAGRAM:
CLP-180 CAMERA EXTENSION CABLE Buery Mount
WHITE Wire
Parking Guideline
Cut = ON
Joined = OFF
Regulator
Extension Coax Cable
GROUND
RED Wire (A)*
License Plate Camera
RED Wire (B)*
Make sure the arrows
line up and push in
the connectors well.
To Aftermarket Radio
Backup Camera Input
OR
Reverse Camera Interface
Backup Camera Input
*NOTE: The camera needs a +12V trigger. Power the camera at the headunit using RED Wire B or from the reverse light
wire using RED Wire A. DO NOT connect both wires to +12V at the same me. Insulate the red wire that is not being
used. Tap the Black wire to an exisng ground lead, or ground Black wire securely to vehicle body metal.
R
INTERFACING SOLUTIONS
Sightline
CAMERAS
1. Remove the license plate. 2. The license plate bar is mounted
behind the license plate.
3. Adjust the angle if necessary.
LICENSE PLATE CAMERA INSTALLATION:
