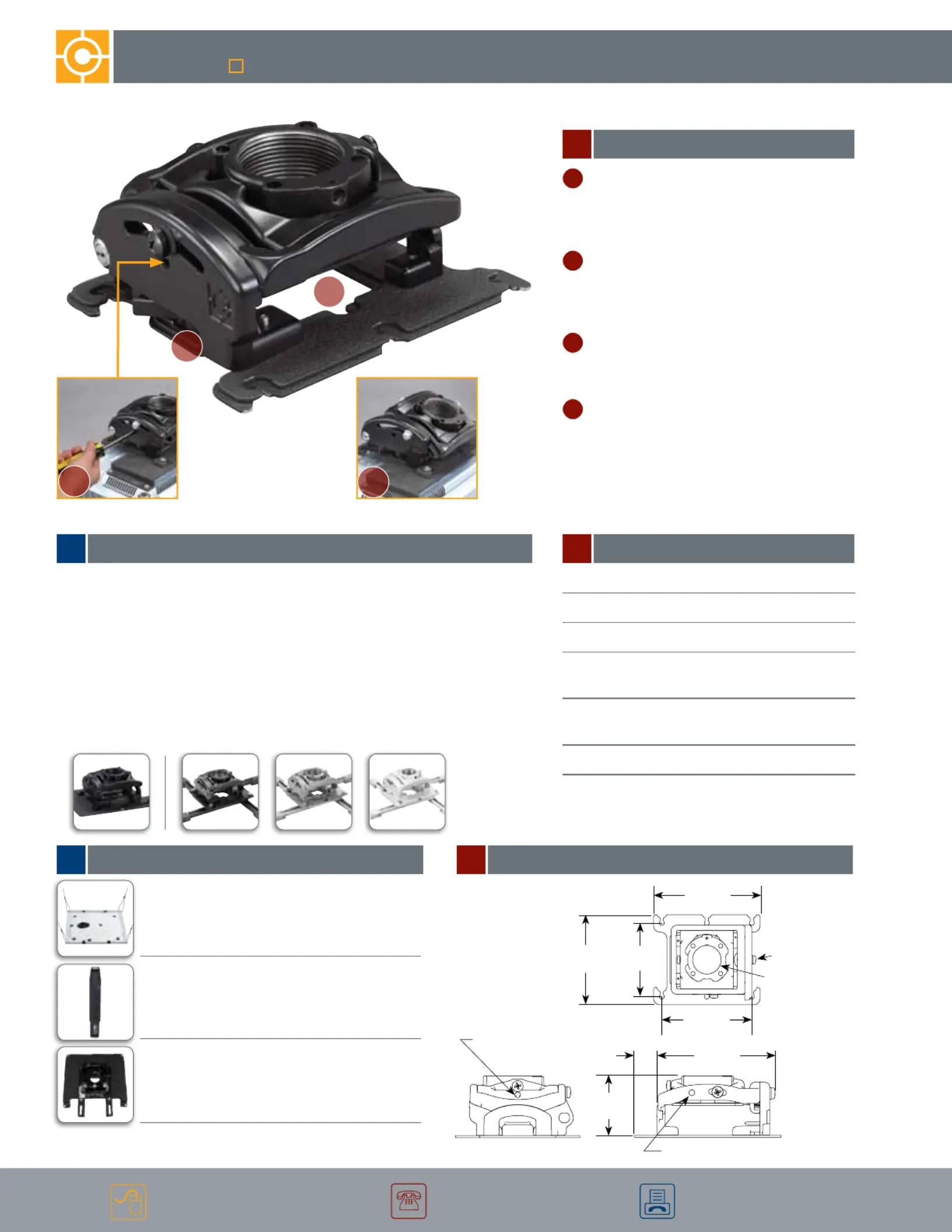

SPECIFICATIONS
FEATURES
TECHNICAL DRAWINGS
WHAT YOU NEED TO KNOW
RECOMMENDED ACCESSORIES
6
rPMa RPA ELITE
®
PROJECTOR MOUNT
MiCroZonE
™
AdjustMEnts
PATENT-PENDING
This feature makes projector registration fast
and precise (including flush-mount installations).
CEntris
®
tEChnology
PATENT-PENDING
Enables effortless fingertip positioning. Self-
adjusts to support different projector weights.
CAblE MAnAgEMEnt
Route cables through top of mount without
additional accessories.
Q-loCk
™
QuiCk rElEAsE lEvEr
Provides quick connect/disconnect of the
projector for service and enhanced security
with an integrated key and lock system.
1
2
3
4
* Dimensions don’t include interface bracket
Roll 3˚±
Pitch ±20˚
Yaw 360˚
Dimensions* 2.75” x 6.5” x 5.5”
(HxWxD) (69 x 165 x 140 mm)
Color, Custom Black
Color, Universal Black, Silver, White
Weight Capacity 50 lbs (22.7 kg)
For a complete list of projector mount accessories see page .21
cMS SuSPended ceiling kitS
cMS extenSion coluMnS
lSb101
n Lateral Shift Accessory
Yaw Adjustment
Point 20˚±
4
3
1
2
Roll Adjustment Point 3˚±
1.0”
(25 mm)
1-1/2” DIA NPT
2.72”
(69 mm)
5.24”
(133 mm)
6.5”
(165 mm)
4.5”
(114 mm)
5.5”
(140 mm)
5.5”
(140 mm)
Pitch Adjustment
Point 20˚±
about rPMa elite
• New universal interface with faster installation, and lamp and filter access
• Keyed locking options (A/B/C/D)
• Compatible with a wide array of accessories
• Ships fully-assembled with everything you need for installation
in one box
• Available in custom (black) or universal (black, silver, white)
ceiling MountS
Problemløsning Chief RPMA196
Hvis du har læst manualen omhyggeligt, men ikke fundet en løsning på dit problem, bed andre brugere om hjælp
Specifikationer
| Bredde: | 165 mm |
| Dybde: | 140 mm |
| Højde: | 69 mm |
| Produktfarve: | Sort |
| Monteringstype: | Loft |
| Maksimal vægtkapacitet: | 22.7 kg |
| Justerbar arm: | Ingen |
