Hünegräben 26 · 57392 Schmallenberg · Germany · Tel.: +49 2972 97880 · E-mail: contact@audiotec-scher.com
High Denition Bluetooth® 5.0 Audio Streaming Module
Congratulations!
Dear Customer,
congratulations on your purchase of this high-qual ity HELIX / MATCH
EXTENSION CARD. We developed the BT HD based on state-of-
the-art engineering and this is reected in its exceptional quality and
the impressive use of sophisticated technologies.
We hope you enjoy using this product.
Yours,
AUDIOTEC FISCHER
General installation instructions for HELIX / MATCH components
To prevent damage to the unit / module and possible injury, read this
manual carefully and follow all installation instructions. This product
has been checked for proper function prior to shipping and is guaran-
teed against manufacturing defects.
Before starting your installation, disconnect the battery’s nega-
tive terminal and all cables from the device to prevent damage
to the unit / module, re and / or risk of injury. For a proper perfor-
mance and to ensure full warranty coverage, we strongly recommend
to get this product installed by an authorized HELIX / MATCH dealer.
Install the Extension Card only in the designated device and its
specic slot. Using the module in other devices or slots can re-
sult in damage of the Extension Card, the device, the head unit /
radio or other connected devices!
Technical data
Bluetooth® standard: 5.0 + EDR
Bluetooth® prole: A2DP, AVRCP, SPP
Bluetooth® codec: SBC, AAC, Qualcomm® aptX
™
and Qualcomm® aptX
™
HD
Number of paired devices: 8
Wireless frequency range: 2402 ~ 2480 MHz
Range: Up to 10 m
Digital optical output: SPDIF with either 96 kHz / 24 Bit
or 48 kHz / 24 Bit depending on
sampling rate of the device
Status LED of BT HD
Blue LED on: 1 sec,
o: 2 secs, repeat
All profiles are in standby
but not connected with any
Bluetooth® device yet
Blue & Enter pairing modeRed LED ash alternate
Blue LED ash every 2 sec. Device is connected
Blue LED ash twice every 2 sec. Device is streaming
Mounting information
1. First disconnect all cables from the device.
2. Depending on the device there are two possibilities to get access
to the Extension Card slot.
1. Bottom plate is bolted: untighten the screws of the bottom plate
and remove it. Afterwards dismantle the appropriate side panel by
removing its screws.
2. Bottom plate is not bolted: dismantle the appropriate side panel
by removing its screws and pull out the bottom plate sideways.
3. Remove the nut and the washer from the antenna socket of the
Extension Card.

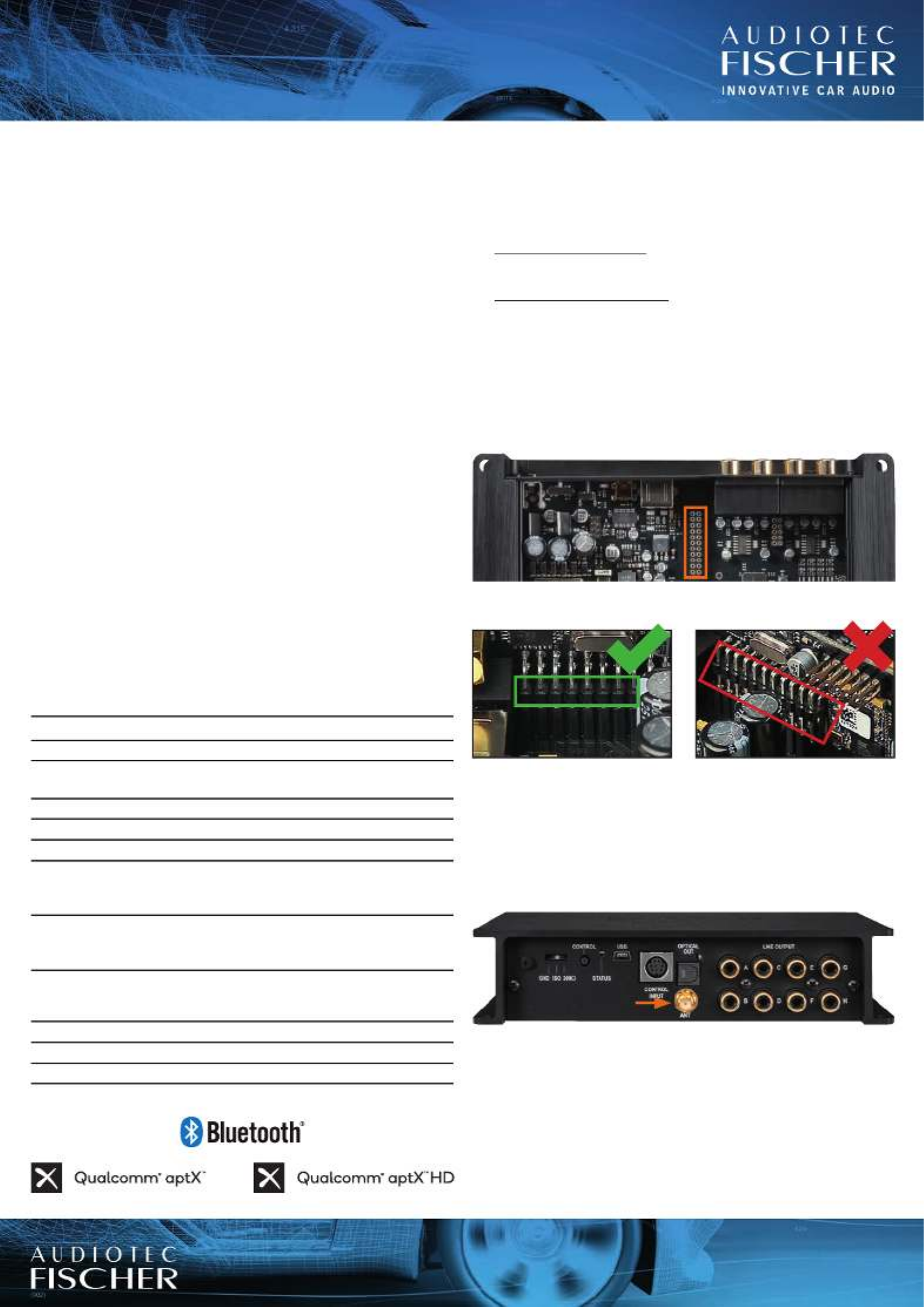

4. Insert the Extension Card into the specic slot of the device which
is marked in the following picture (the picture representatively dis-
plays the Extension Card slot of the HELIX DSP.3). The exact
position of the slot can be found in the manual of each device.
5. Make sure that the module is installed properly and all pins are
fully inserted into the socket:
6. If the bottom plate was bolted, x the new side panel which is
delivered with the Extension Card. Afterwards reinsert the bottom
plate and x it, too. Otherwise reinsert the bottom plate and x the
new side panel with the screws.
7. Put the washer and the nut on the antenna socket and bolt it to
the side panel.
Caution: Do not overtighten the nut as this may damage the
socket!
8. Reconnect all cables to the device.
EXTENSION CARD
HEC / MEC BT HD
