QRC GOLD
Installation Instructions
A7595-0282 Rev E
DA-E751 Sht 1 of 2
FEATURES
CAUTION: Open + and – wires inside bracket. DO NOT attach battery without terminating wires.
1. Cam action latch for improved ease of battery loading and removal. Red label below latch indicates battery is not fully
latched, eliminating inadvertent battery unloading.
2. PowerTap
®
Connector. A built-in fused 10 amp connector for powering Ultralight
®
portable camera light and
accessories. NOTE: Requires PowerTap connector. The PowerTap connector is included on all Ultralight 2 light
assemblies and cable assemblies for the older Ultralight SINGLE or DUAL.

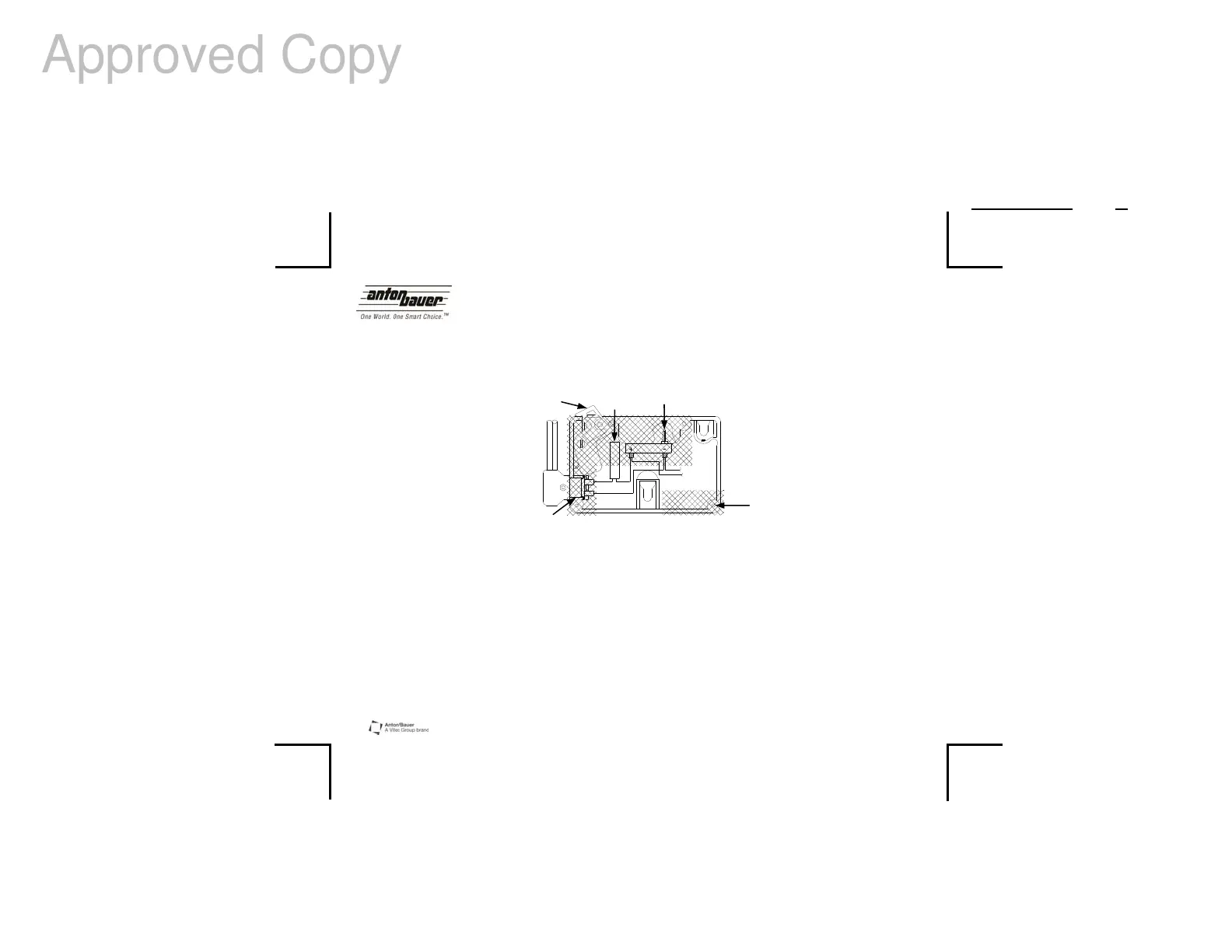

3. Mounting Pattern. The Snap-On Gold Mount bracket is fully compatible with all existing cameras and batteries using
the Anton/Bauer mounting system. NOTE: When custom mounting the Gold Mount bracket system it is necessary to
support the shaded areas (see Fig. A) against a flat surface. A backplate is provided with each Gold Mount bracket for
this
purpose.
4. PowerTap Fuse Holder. The fuse holder for the PowerTap connector
. The fuse holder located in the bracket is press
fit. To remove the fuse holder,
g
ras
p
the main fuse holder bod
y
and
p
ull u
p
.
Compact universal Gold Mount
®
kit with mounting hardware and wire terminals, most DC powered professional video
equipment utilize specific Gold Mount models (see Anton/Bauer catalog’s Gold Mount section and Product Application Guide).
The QRC-Gold is ideal for adapting video devices where no other Gold Mount is specified. Before adapting the QRC-Gold to
any video device for the first time, check to confirm compatibility with an Anton/Bauer 14.4 volt battery.
