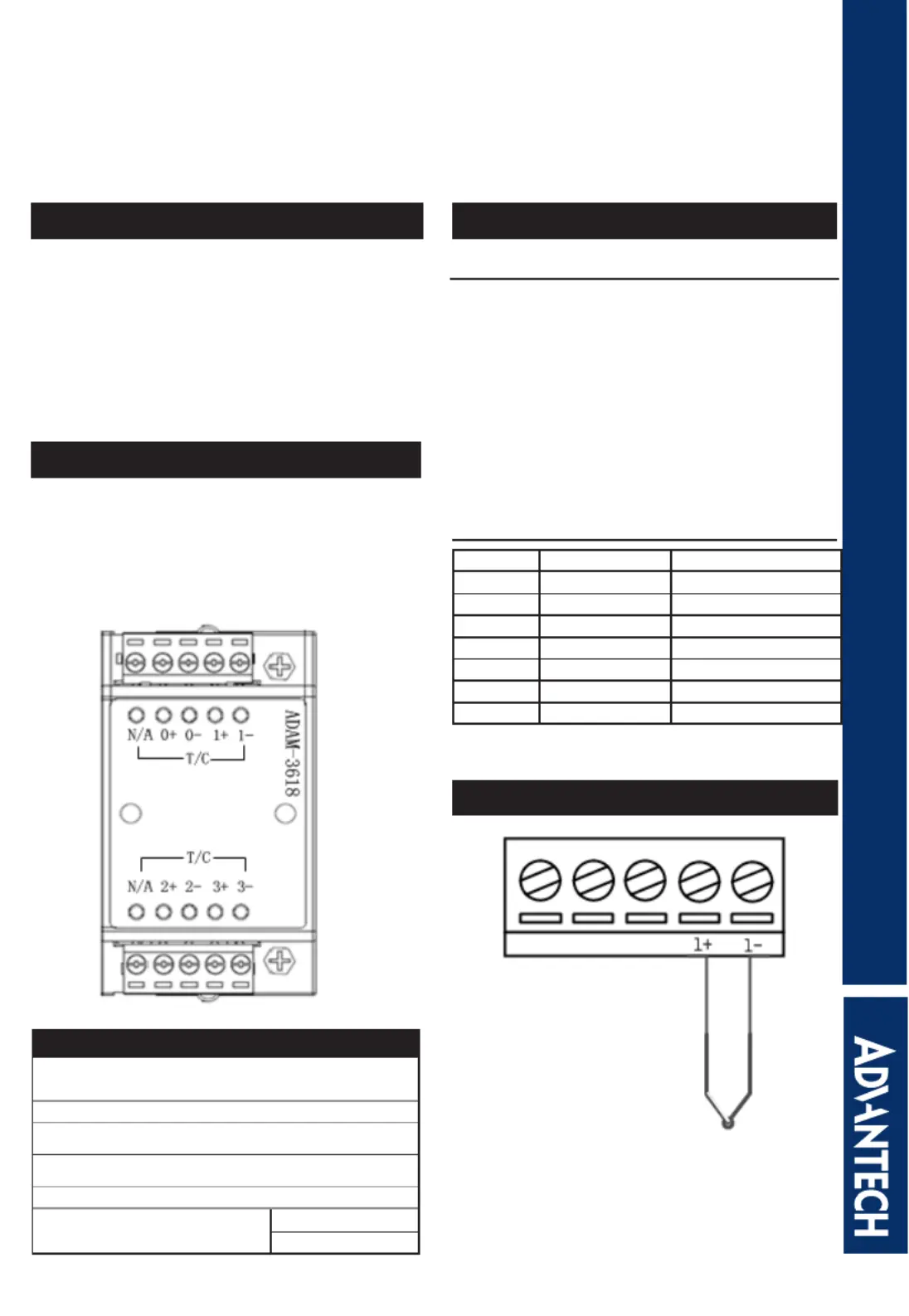

Startup Manual 1
Packing List
Before installation, make sure that you have
received the following:
•
ADAM-3618 Product
• ADAM-3618 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Specications
System Functions
• Analog Input Channels: 4 differential
• Input Types: J, K, T, E, R, S, B
Type Thermocouple
• Resolution 16-bit
• Accuracy Refer to below
• Isolation Voltage 2000 V
DC
• Burn-out Detection Yes
• Power Consumption 1w
• Operation Temp. -40 ~ 70°C
• Warranty 2 years
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3618
Part No: 2003A61800 1st Edition
May 2016
STARTUP MANUAL
ADAM-3618
4-ch Thermal Couple Module
Application Wiring
Overview
As ADAM-3600 Extension I/O, ADAM-3618 is a
16-bit, 4-channel analog input module that pro-
vides temperature signal acquisition. This module
is extremely cost-effective solution for industrial
measurement and monitoring applications
Caution:
When connecting jumpers or installing the card, you should disconnect the power to prevent surges
damaging sensitive electronic components.
Type Range Accuracy @ 25°C
J
0~760 2.5°C°C ±
K 0~1370°C
±2.5°C
T -100~400°C
±2 °C
E 0~1000°C
±2.5°C
R 500~1750°C
±2.5°C
S 500~1750°C
±2.5°C
B 500~1800°C
±3°C
TC type range & Accuracy
